INCH-POUND MS14003J
5 October 2011
SUPERSEDING MS14003H
30 September 1986
DETAIL SPECIFICATION SHEET
SWITCH, TOGGLE, POSITIVE BREAK, ENVIRONMENTALLY SEALED, SOLDER LUG, FOUR POLE, .469 MOUNTING BUSHING, 25 AMPERES
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the products described herein shall consist of this specification sheet and MIL-DTL-8834.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±.010 (0.25 mm) on decimals and ±5° on angles.

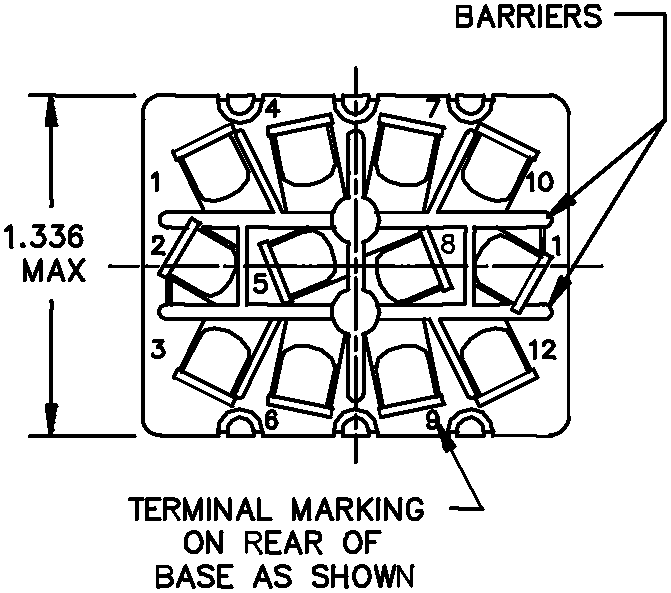

FIGURE 1. Dimensions and configuration.
AMSC N/A FSC 5930
