MIL-PRF-8805/99H
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±.03 (0.8 mm) for two place decimals and ±.005 (0.13 mm)
for three place decimals.
4. Panel dress ring replaces one hex nut.
5. Alternate mounting hole (2 hole) should not be used for panel seal applications.
6. Terminals 5 and 6 omitted from 2-circuit switch.
7. Alternative base metals and protective finishes as approved by the qualifying activity, may be utilized
for hardware material. Dimensions shall be in accordance with the referenced hardware specification.

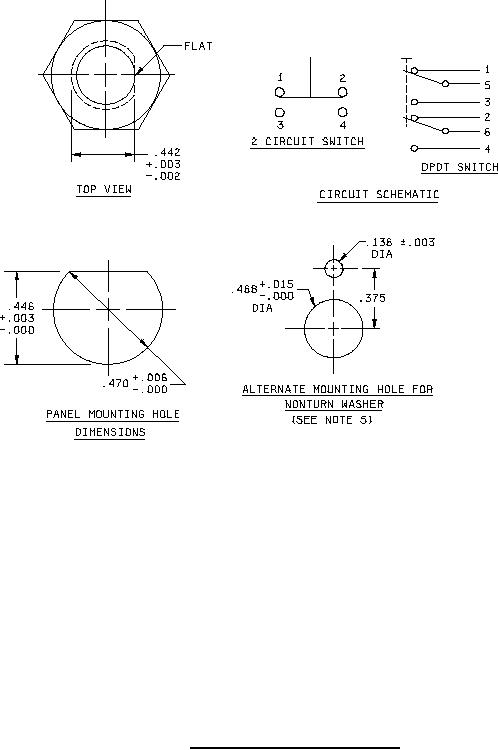

FIGURE 1. Dimensions and configurations - Continued.
