INCH-POUND
MIL-PRF-8805/96E
4 October 2004
SUPERSEDING
MIL-PRF-8805/96D
3 September 1999
PERFORMANCE SPECIFICATION SHEET
SWITCHS, PUSH, MOMENTARY, SPST, 5 AMPERES
This specification is approved for use by all Depart-
ments and Agencies of the Department of Defense.
The complete requirements for acquiring the switches described herein
shall consist of this specification and the latest issue of MIL-PRF-8805.
LOCKWASHER
NASM 35333-74
OR EQUIVALENT
Inches
mm
.015
0.38
.016
0.41
.055
1.39
.130
3.30
.136
3.45
NOTES:
.156
3.96
1. Dimensions are in inches.
.250
6.35
2. Metric equivalent are given for general information only.
.282
7.16
3. Unless otherwise specified, tolerance is ±.015 inch (0.38 mm).
.312
7.92
.343
8.71
1.046
26.5

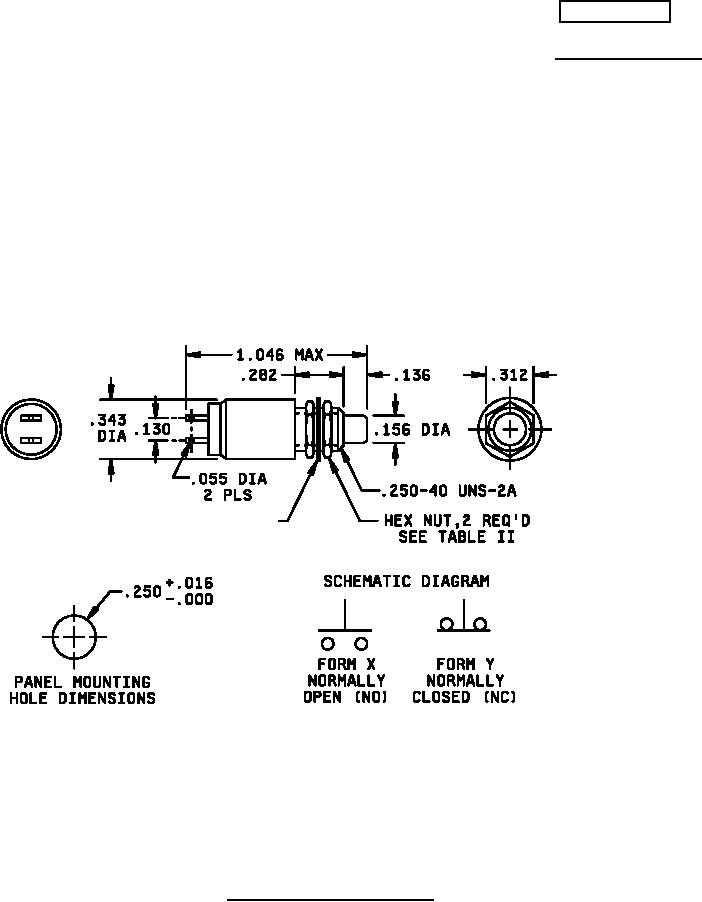

FIGURE 1. Dimensions and configurations.
AMSC N/A
FSC 5930
