MIL-PRF-8805/93E
NASM35333-136 LOCKWASHER
OR EQUIVALENT
SEE NOTE 5
Inches
mm
Inches
mm
Inches
mm
Inches
mm
.002
0.05
.110
2.79
.468
11.89
.930
23.62
.003
0.08
.13
3.30
.469
11.91
1.15
29.21
.005
0.13
.240
6.10
.50
12.70
1.16
29.46
.015
0.38
.388
9.86
.56
14.22
1.17
29.72
.03
0.76
.432
10.97
.670
17.02
1.30
33.02
.032
0.81
.448
11.38
.720
18.29
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±.03 inch (0.76 mm) for two place decimals and ±.005 inch (0.13 mm)
for three place decimals.
4. Configuration optional provided that specified envelope dimensions are not exceeded.
5. Alternative base metals and protective finishes, as approved by the qualifying activity, may be utilized for hexagon
nut, lock washer and key washer material. Dimensions shall be in accordance with the referenced hardware
specifications.

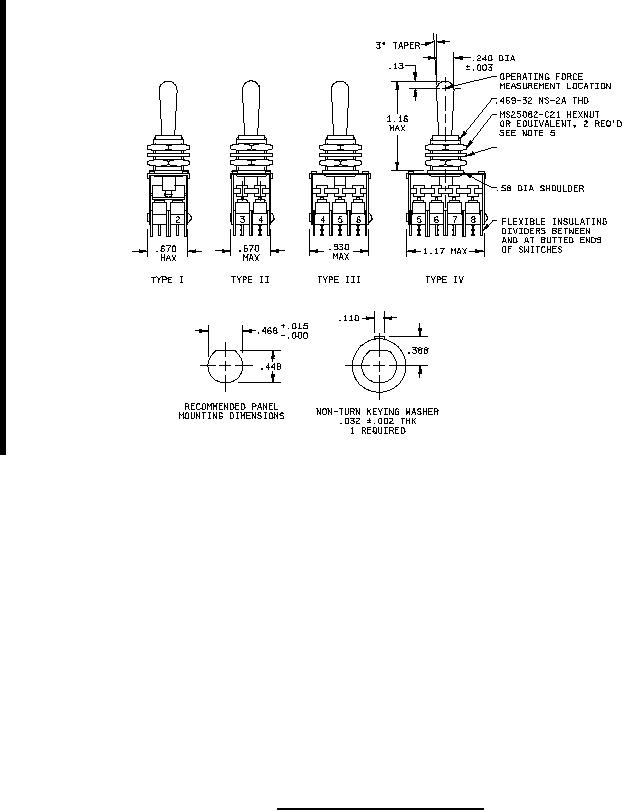

FIGURE 1. Configurations and dimensions - continued.
