MIL-PRF-8805-84 Switches, Sensitive, Watertight, 10 Amperes, Double Break

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8


MIL-PRF-8805/84F
M8805/84-004
M8805/84-006
M8805/84-005
(same as -001
(same as -003
(same as -002
except as shown)
except as shown)
except as shown)

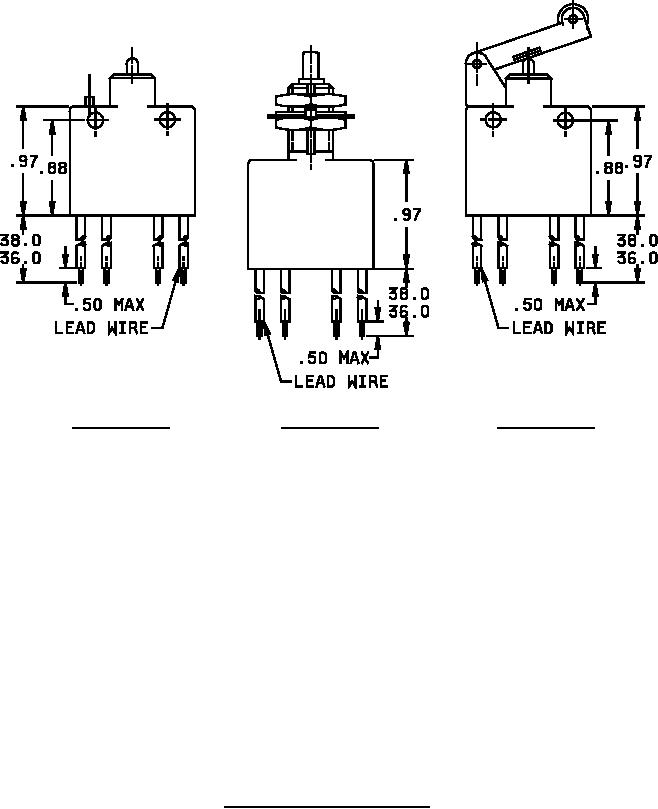

FIGURE 1. Dimensions and configurations - Continued.
4
