MIL-PRF-8805/68L
Inches
mm
Inches
mm
.003
0.08
.250
6.35
.005
0.13
.296
7.52
.010
0.25
.320
8.13
.020
0.51
.336
8.53
.028
0.71
.345
8.76
.031
0.79
.350
8.89
.035
0.89
.364
9.25
.062
1.57
.4375
11.11
.068
1.73
.440
11.18
.070
1.78
.468
11.89
.090
2.29
.592
15.04
.113
2.87
.666
16.92
.175
4.45
71.00
1803.40
.187
4.75
73.00
1854.20
.190
4.83
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ±.015 (0.38 mm).
4. Dimensions of switches with wire leads are the same as switches with solder lugs except as
shown.

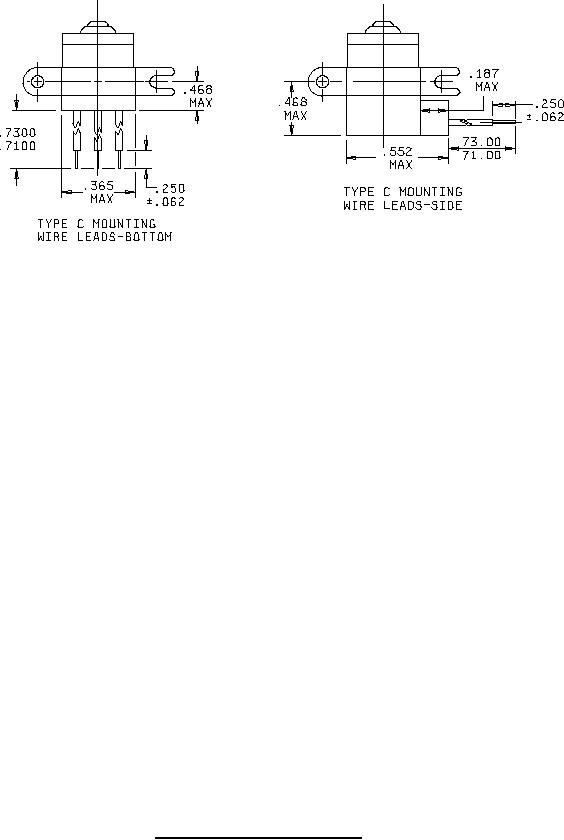

FIGURE 1. Dimensions and configurations continued.
3
