MIL-PRF-8805/49J
Inches
mm
Inches
mm
Inches
mm
.003
0.76
.25
6.35
.765
19.43
.037
0.94
.34
8.64
1.0
25.4
.062
1.57
.36
9.14
1.24
31.50
.140
3.56
.469
11.91
1.50
38.10
.15
3.8
.500
12.70
2.0
50.
.190
4.83
.545
13.84
2.5
63.5
.675
17.15
72.0
1828.

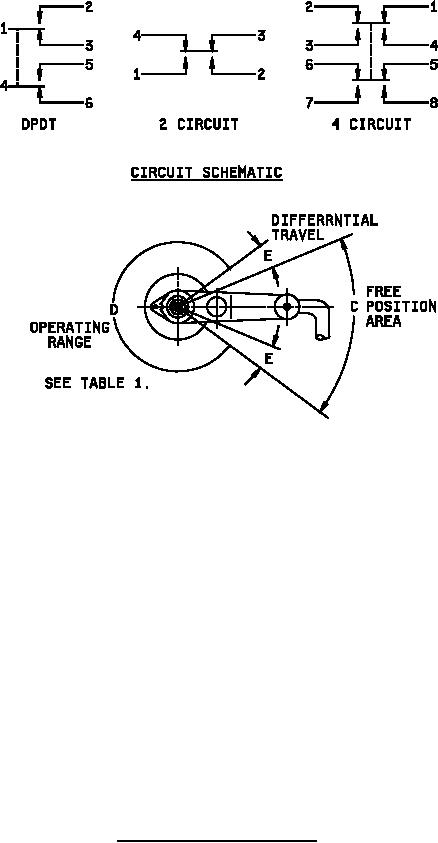

NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±.02 (0.51 mm) for two place decimals and ±.005 (0.13
mm) for three place decimals.
4. Lever shall be adjustable for an infinite number of positions through 360° without removing lever.
6. Envelope optional provided dimensions specified are not exceeded.
7. Alternative base metals and protective finishes, as approved by the qualifying activity, may be utilized
for locking nut, flat washer, hexagon mounting nut and lock washer. Dimensions shall be in
accordance with the referenced hardware specifications.
FIGURE 1. Configuration and dimensions - Continued.
