INCH-POUND
MIL-PRF-8805/49J
6 December 2012
SUPERSEDING
MIL-PRF-8805/49H
4 October 2004
PERFORMANCE SPECIFICATION SHEET
SWITCHES, SENSITIVE, LIMIT, ROTARY LINKAGE LEVER (NONSELF-RETURN),
RESILIANT SEAL, FLUID RESISTANT
This specification is approved for use by all Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-PRF-8805.
LOCKING NUT
NASM 21083
OR EQUIALENT,
SEE NOTE 7
LOCKWASHER
NASM 35333-136
OR EQUIALENT,
SEE NOTE 7

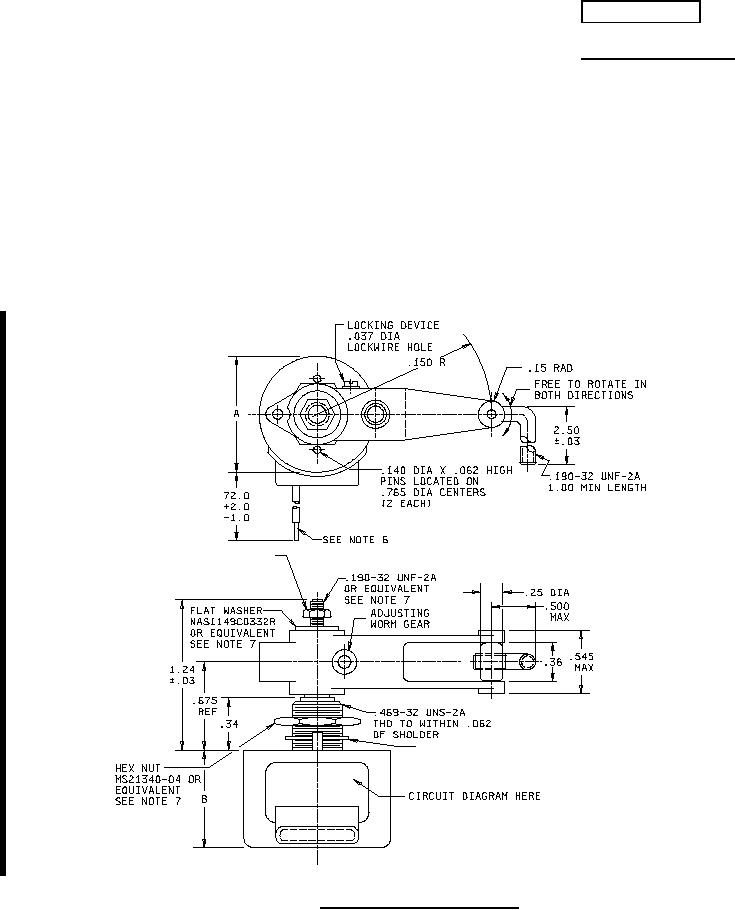

FIGURE 1. Configuration and dimensions.
AMSC N/A
FSC 5930
