INCH-POUND
MIL-PRF-8805/48H
4 October 2004
SUPERSEDING
MIL-PRF-8805/48G
3 September 1999
PERFORMANCE SPECIFICATION SHEET
SWITCHES, SENSITIVE, LIMIT, ROLLER LEVER, SELF-RETURN,
RESILIANT SEAL, FLUID RESISTANT
This specification is approved for use by all Depart-
ments and Agencies of the Department of Defense.
The complete requirements for acquiring the switches described herein
shall consist of this specification and the latest issue of MIL-PRF-8805.
Inches
mm
.037
0.94
.062
1.57
.140
3.56
.190
4.83
.31
7.8
.34
8.6
.469
11.91
LOCKING NUT NASM 21083 OR
EQUIVALENT
.545
13.84
SEE NOTE 8
.630
16.00
WASHER NAS1149C0332R
OR EQUIVALENT
.675
17.15
SEE NOTE 8
.750
19.05
.765
19.43
1.0
25.
1.50
38.1
2.0
50.
72.0
1828.
LOCKWASHER NASM 35333-136 OR
EQUIVALENT, SEE NOTE 8

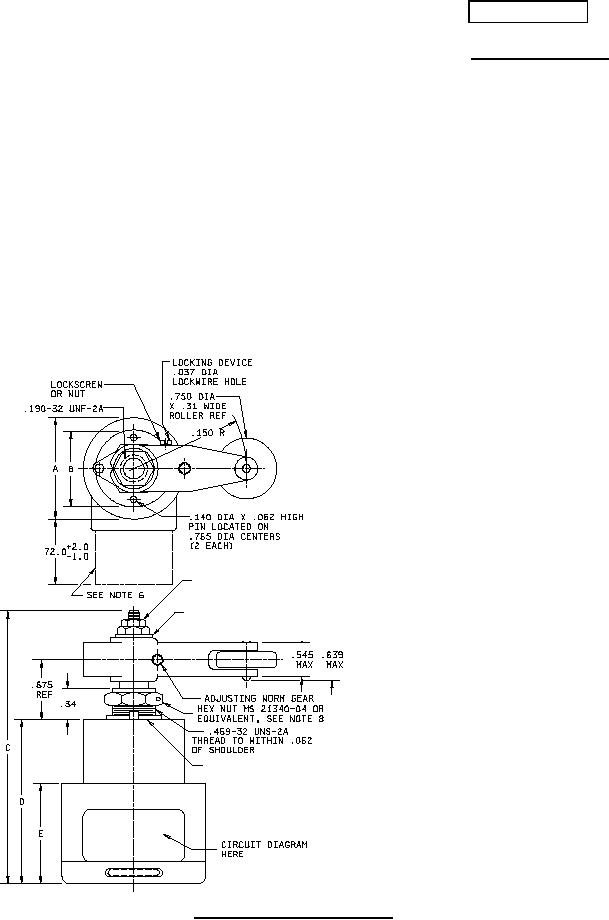

FIGURE 1. Configuration and dimensions.
