MIL-PRF-8805/4P
Inches
mm
Inches
mm
Inches
mm
.002
.0508
.062
1.574
.187
4.750
.003
.0762
.063
1.600
.188
4.775
.005
.127
.070
1.778
.210
5.334
.015
.381
.088
2.235
.270
6.858
.020
.508
.090
2.286
.290
7.366
.030
.762
.096
2.438
.320
8.128
.035
.889
.120
3.048
.350
8.890
.040
1.016
.156
3.962
.374
9.410
.060
1.522
.180
4.572
.510
12.954
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±.010 (0.25 mm) for three place decimals.
4. Mounting holes will accept pins or screws of .087 (2.21 mm) maximum diameter on .188 ±.002
(4.78 ±0.05 mm) centers.
5. Double turret terminals shall accept two AN-20 wires.

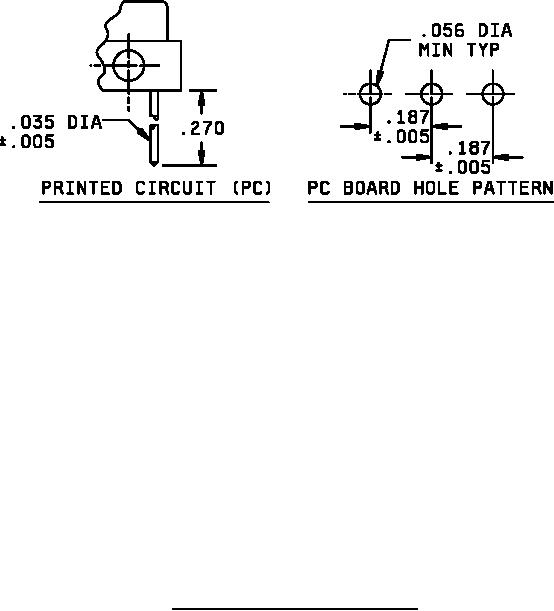

FIGURE 1. Switches, sensitive, SPDT, unsealed- Continued.
REQUIREMENTS:
Dimensions and configurations: See figure 1.
Enclosure design:
1 (unsealed)
Temperature characteristic:
1 (- 55°C to + 85°C).
MS24547-1 through MS24547-12:
Shock type: M (100 g's).
Vibration grade: 1 (10 Hz to 500 Hz swept sinusoidal 10 g's).
2
