MIL-PRF-8805/18G
Inches
mm
Inches
mm
Inches
mm
.002
0.05
.187
4.75
.505
12.83
.003
0.08
.218
5.54
.562
14.27
.005
0.13
.250
6.35
.708
17.98
.010
0.25
.296
7.52
.850
21.59
.031
0.79
.375
9.53
1.250
31.75
.070
1.78
.437
11.10
1.327
33.71
.114
2.90
.491
12.47
.125
3.18
.500
12.70
NOTES:
1.
Dimensions are in inches.
Unless otherwise stated, tolerance is ±.015 (0.38 mm).
2.
3.
Exact shape of switch optional provided dimensions specified are not exceeded.
4.
Metric equivalents are given for general information only.
5.
Dimensions shown are case mounting holes. Cover mounting holes may exceed these dimensions.

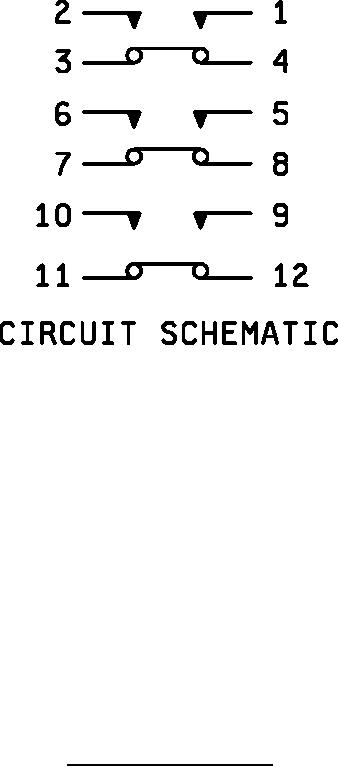

FIGURE 1. Dimensions and configurations (continued)
2
