MIL-PRF-8805/111A
st

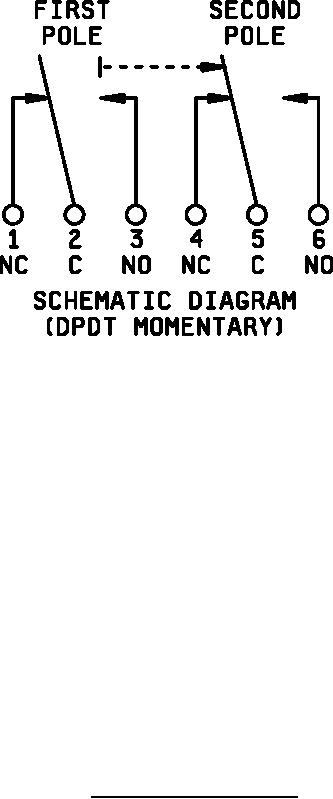

1 POLE MAKES WITH PARTIAL DEPRESSING OF TRIGGER.
nd
2 POLE MAKES DEPRESSING TRIGGER THROUGH DETENT TO FULL "IN" POSITION.
Inches
mm
Inches
mm
Inches
mm
.016
.41
.125
3.18
.762
19.35
.025
.63
.156
3.96
1.000
25.40
.031
.79
.172
4.37
1.062
26.97
.060
1.52
.265
6.73
1.234
31.34
.062
1.57
.312
7.92
1.450
36.83
.075
1.90
.440
11.18
1.900
48.26
.094
2.39
.641
16.28
.100
2.54
.688
17.48
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only and are based upon 1 inch = 25.4 mm..
3. The terminal designation shall be permanently marked.
4. Unless otherwise specified, tolerance is ±.010 (.25 mm).
FIGURE 1. Configurations and dimensions - continued.
