MIL-PRF-8805/107C
Electrical endurance:
At sea level: 25,000 cycles.
At 50,000 feet: 5,000 cycles.
Sand and dust: Applicable.
Part numbers: Part numbers are assigned as follows:
Example:
M8805/107-
1
04R
Specification
sheet number
Circuit code
(see table II)
Plunger cap and
action code
(see table III)

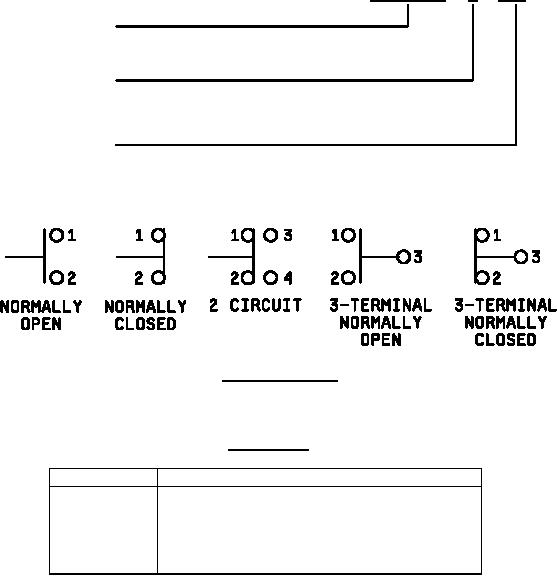

FIGURE 3. Circuit schematic.
TABLE II. Circuit code.
Code
Circuit schematic (see figure 3)
1
Normally open
2
Normally closed
3
Two-circuit
4
Three-terminal normally open
5
Three-terminal normally closed
5
