MIL-PRF-8805/107C
Plunger Cap
See Detail
Boot
CORROSION RESISTANT
Inches
mm
.005
0.13
.012
0.30
.015
0.38
.022
0.56
.03
0.76
.125
3.17
.156
3.96
.172
4.37
.219
5.56
.281
7.14
.297
7.54
.375
9.52
.39
9.9
.406
10.31
.500
12.70
.562
14.27
.625
15.88
1.09
27.7
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ±.010 (0.25 mm).
4. All terminal threads are .086-56UNC-2B.
5. Hardware for each terminal includes one screw, one terminal lug and one lockwasher.

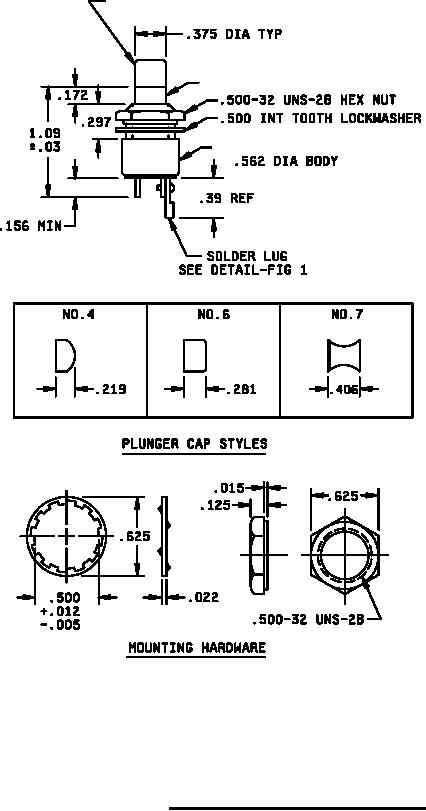

FIGURE 2. Basic switch without mounting adapter.
