MIL-PRF-83504/9C

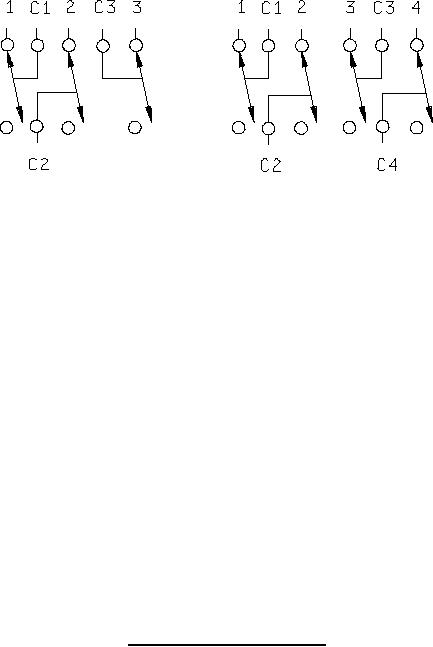

Typical circuit diagram
( Viewed from top )
Inches
mm
Inches
mm
.003
0.08
.090
2.29
.005
0.13
.100
2.54
.010
0.25
.160
4.06
.012
0.30
.200
5.08
.015
0.38
.240
6.10
.020
0.51
.300
7.62
.021
0.53
.380
9.65
.030
0.76
.447
11.35
.040
1.02
NOTES
1. Dimensions are in inches. Metric equivalents are given for information only.
2. Each switch position shall be numbered as shown.
3. Exact shape of switch is optional, provided outline dimensions are not exceeded.
4. Design of terminals and standoffs are optional
FIGURE 1. Dimensions and configuration - Continued.
REQUIREMENTS:
Material:
Body and actuator rocker: Molded plastic.
Terminals: The terminals shall be equivalent to or better than solder over nickel over copper over
brass.
Terminal sealing and solderability: The terminal potting material meniscus may extend to .030 inch
maximum beyond the solder standoff.
2
