MIL-PRF-83504/1D

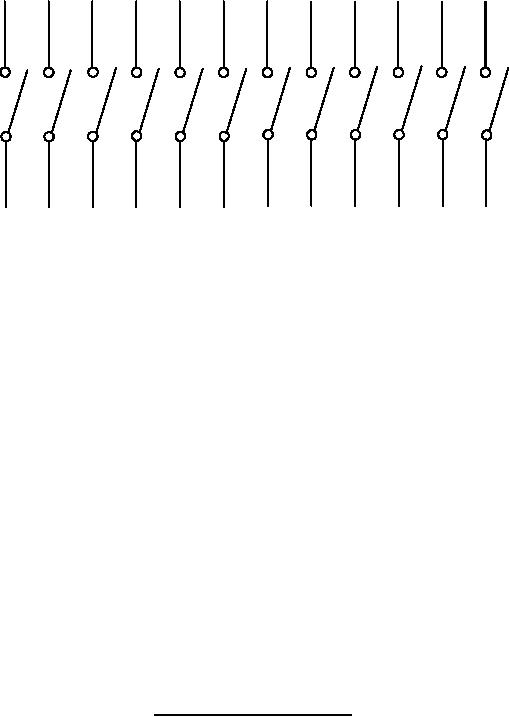

Typical contacts circuit arrangement 12 station switch.
(Contacts shown in open position)
Inches
mm
Inches
mm
.003
0.08
.095
2.41
.005
0.13
.100
2.54
.012
0.30
.160
4.06
.015
0.38
.240
6.10
.020
0.51
.295
7.49
.021
0.53
.300
7.62
.030
0.76
.345
8.76
.040
1.02
.380
9.65
.049
1.24
NOTES
1. Dimensions are in inches. Metric equivalents are given for information only.
2. Each switch station is shown in the "OFF" position. Continuity is established (switch is turned "ON")
when the rocker extension nearer the number is depressed.
3. Each switch position shall be numbered as shown.
4. Exact shape of switch is optional, provided outline dimensions are not exceeded.
5. Design of terminals and standoffs are optional
FIGURE 1. Dimensions and configuration - Continued.
REQUIREMENTS:
Material:
Body and actuator rocker: Molded plastic.
Terminals: Plug-in or solderable. See table I. The solderable terminals shall be equivalent to or
better than solder over nickel over copper over brass. Both plug-in and solderable must meet
solderability requirements.
2
