INCH-POUND

MIL-PRF-83504/1D

23 February 2001

SUPERSEDING

MIL-PRF-83504/1C

27 October 1993

PERFORMANCE SPECIFICATION SHEET

SWITCHES, DUAL IN-LINE PACKAGE (DIP), ROCKER ACTUATOR, STANDARD PROFILE,

SINGLE POLE, SINGLE THROW STATIONS, SEALED BASE

This specification is approved for use by all Depart-

ments and Agencies of the Department of Defense.

The requirements for acquiring the product described herein shall consist

of this specification sheet and the issue of the following specification

listed in that issue of the Department of Defense Index of Specifications

and Standards (DODISS) specified in the solicitation: MIL-PRF-83504.

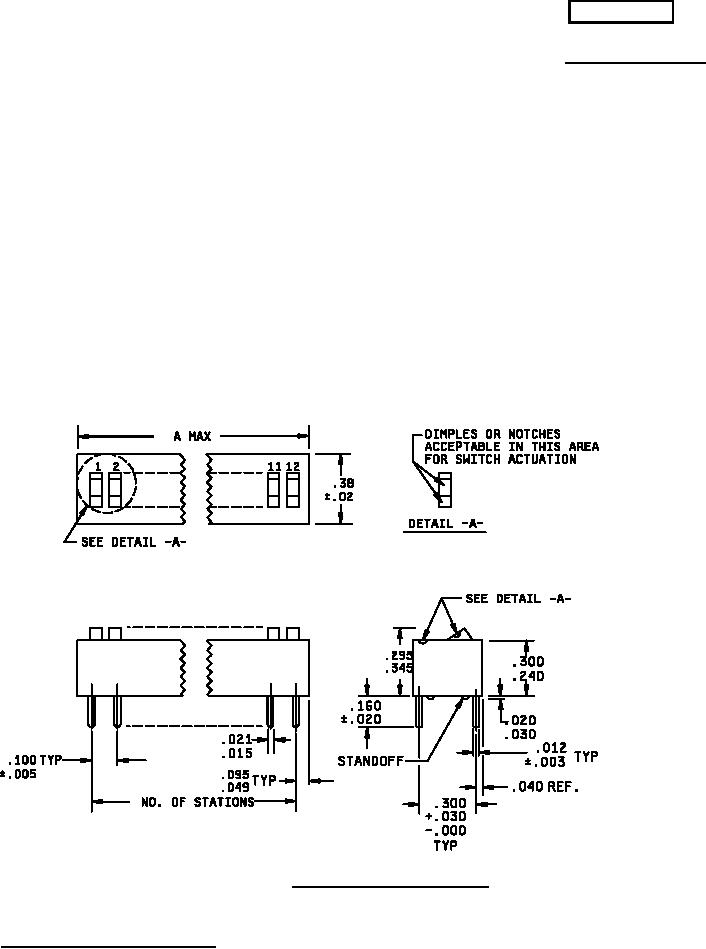

FIGURE 1. Dimensions and configuration.

AMSC N/A

1 of 4

FSC 5930

DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
