MIL-PRF-24236-25 Switches, Thermostatic, \(Bimetallic Type I, Hermetically Sealed Single Pole, Single Throw \(Spst\), 2 Amperes

Pages 1 - 2 - 3 - 4 - 5

MIL-PRF-24236/25D

AWG NO. 18 WIRE LEADS

PER SAE-AS22759/9 or equivalent

Inches

.052

1.32

.648

16.46

.072

1.83

.665

16.89

.360

9.14

.772

19.61

.390

9.91

.990

25.15

.394

10.01

1.010

25.65

.50

12.7

12.00

304.8

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only and are based upon 1.00 inch = 25.4 mm.

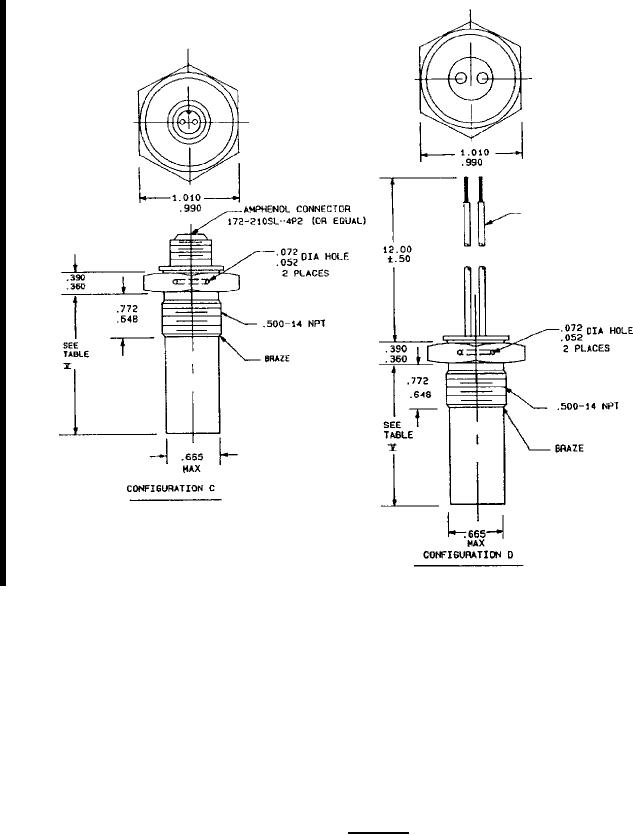

FIGURE 1. Switches - Continued.
