INCH-POUND
MIL-PRF-24236/25D
1 October 2010
SUPERSEDING
MIL-PRF-24236/25C
3 September 1999
PERFORMANCE SPECIFICATION SHEET
SWITCHES, THERMOSTATIC, (BIMETALLIC
TYPE I, HERMETICALLY SEALED
SINGLE POLE, SINGLE THROW (SPST), 2 AMPERES
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the switches described herein shall consist of this specification sheet and
MIL-PRF-24236.
AWG NO. 18 WIRE LEADS
PER SAE-AS22759/9 or equivalent

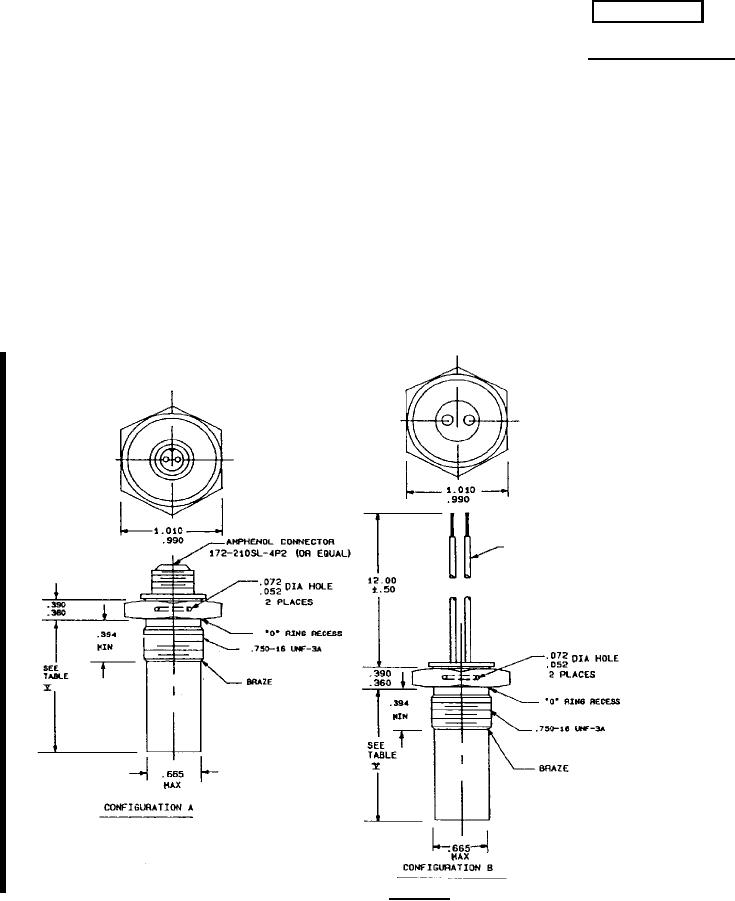

FIGURE 1. Switches.
AMSC N/A
FSC 5930
