MIL-PRF-24236/13J
Inches
mm
.003
.08
NOTES:
.007
.18
1. Dimensions are in inches.
.008
.20
2. Metric equivalents are given for general information only.
.021
.53
3. Unless otherwise specified, tolerance is ±.015 (0.38 mm).
.070
1.78
.080
2.03
.130
3.30
.213
5.41
.263
6.68
.575 14.60
12.000 304.80

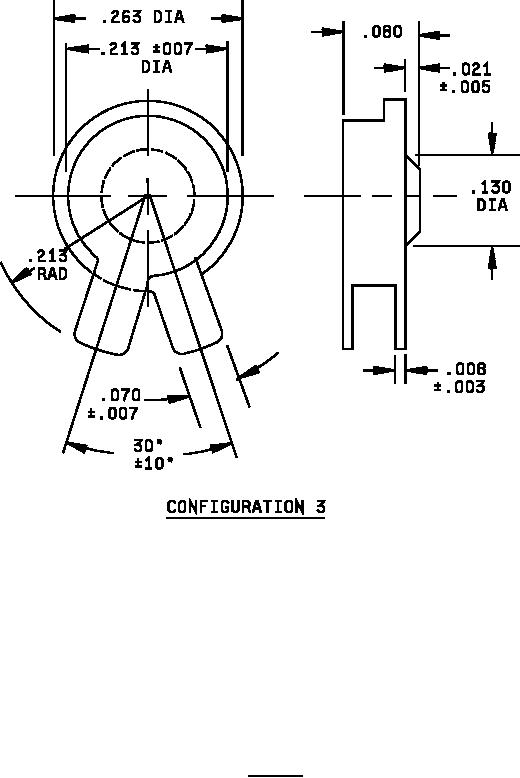

FIGURE 1. Switches - Continued.
3
