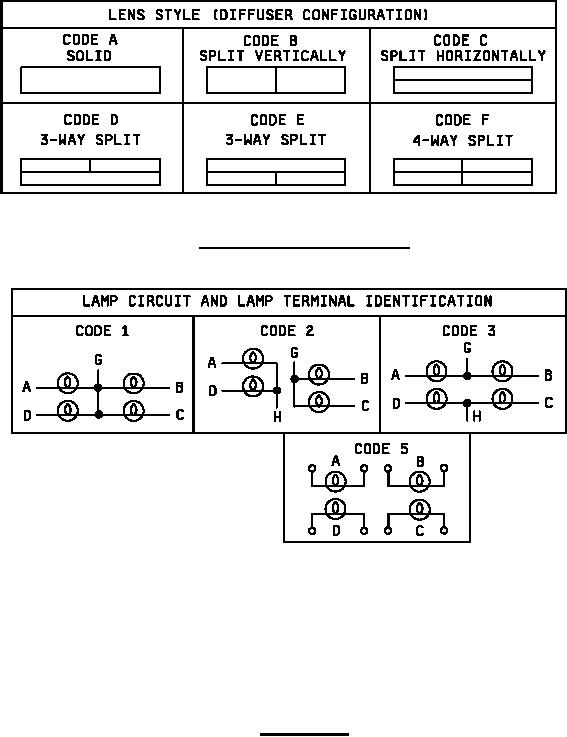

FIGURE 5. Lens style diffuser configuration.
NOTES:
1. For reliability, it is recommended that selection of lens styles and lamp circuits be limited to those
providing at least 2 lamps per display area.
2. Lamp location or lens style shown is as viewed from front panel with module position in accordance
with figure 4.
FIGURE 6. Lamp circuits.
