MIL-PRF-22885-82 Switch, Push Button, Illuminated, Lens Assemblies For, .665 Sq And .916 Lg X .665 Wide

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9

MIL-PRF-22885/82C

Inches

.262

6.65

.635

16.13

.740

18.80

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

3. Unless otherwise specified, tolerance is .010 (0.25 mm).

4. The design configuration is optional within the envelope dimensions known.

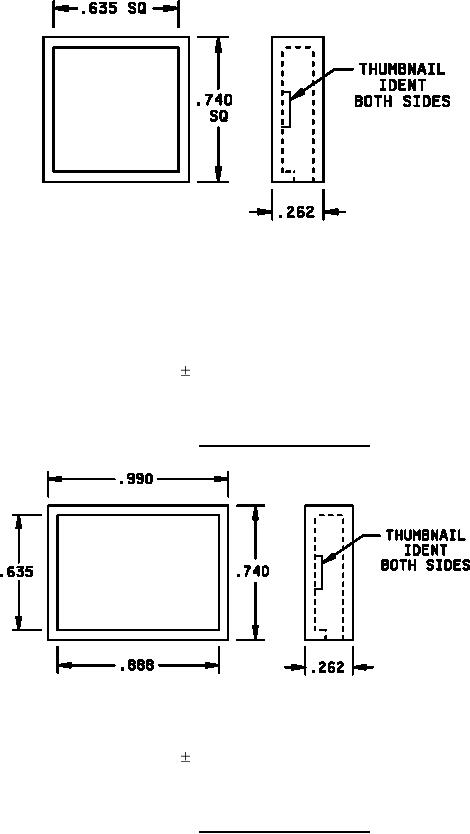

FIGURE 5. Lens retainer (type 1 unit).

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

3. Unless otherwise specified, tolerance is .010 (0.25 mm).

4. The design configuration is optional within the envelope dimensions known.

FIGURE 6. Lens retainer (type 2 unit).
