MIL-PRF-22885-82 Switch, Push Button, Illuminated, Lens Assemblies For, .665 Sq And .916 Lg X .665 Wide

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9

MIL-PRF-22885/82C

Inches

.030

.76

.300

7.62

.634

16.10

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

3. Unless otherwise specified, tolerance is .005 (0.13 mm).

4. for clarification of style see table I.

5. For part number and color see table II.

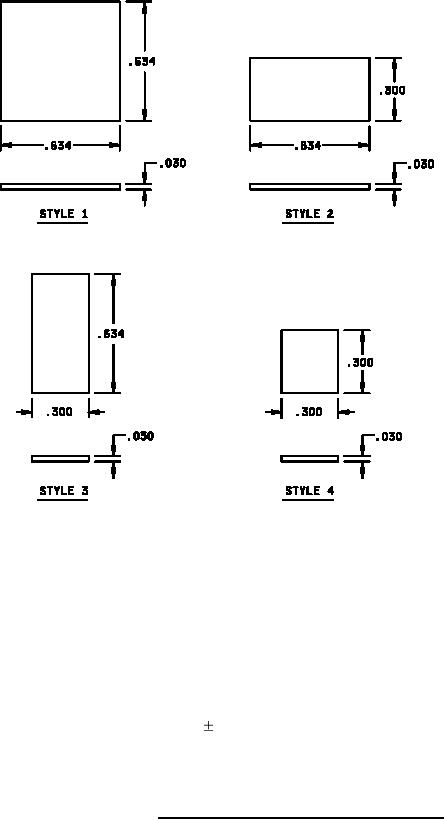

FIGURE 3. Display screen, spacer or color filter, type 1.
