MIL-PRF-22885/75E
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified, tolerances are .005 (0.13 mm) for three place decimals and .03 (0.8
mm) for two place decimals.
3. Metric equivalents are given for general information only.
4. Unit mounts in panels from .125 (3.18 mm) to .250 (6.35 mm) thick.
5. Mounting sleeve shall not exceed .87 square and shall be reversible to accommodate increased panel
thickness.
6. Pushbutton designed to prevent incorrect insertion into switch housing.
7. Exact shape of switch optional provided dimensions specified are not exceeded.

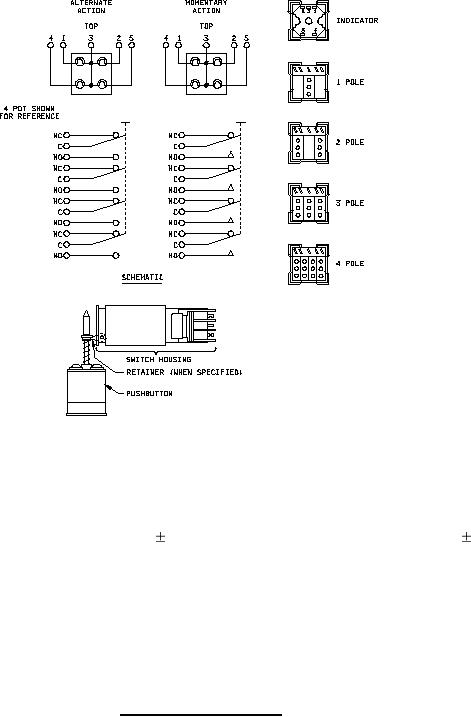

FIGURE 1. Design and construction - Continued.
2
