MIL-PRF-22710/30A
Truth table 5
Circuit configuration 5
22.5 Indexing
Common C
Common C
Dial
Conn to:
Conn to:
Reads
1
2
4
8
1
2
4
8
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
.032 (.81) minimum Thk PCB;
.038 (.97) minimum dia. solder hole connections
Module E
NOTES
1. Dimensions are in inches. Metric equivalents are given for information only and
are based on 1 inch = 25.4 mm.

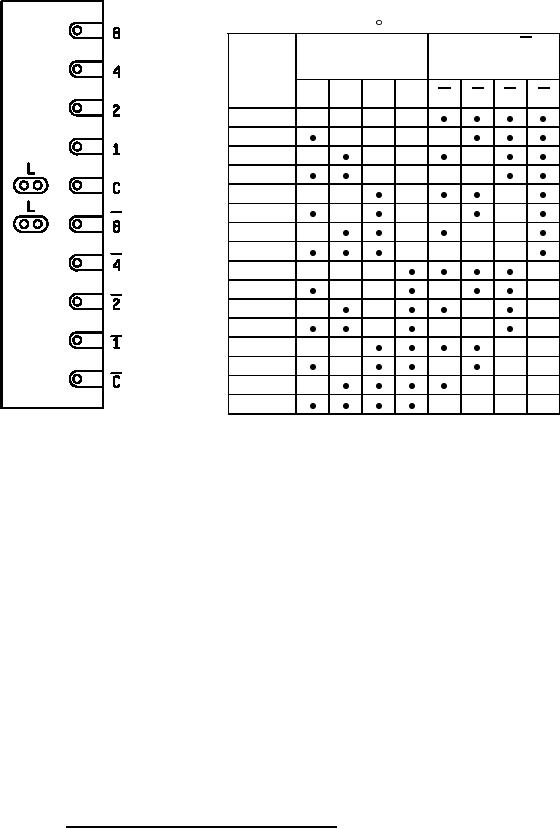

FIGURE 1. Terminal design and circuit configuration - Continued.
