MIL-PRF-22710-23 Switches, Code Indicating Wheel \(Printed Circuit\), \(Pushbutton, Unidirectional, Sealed Or Unsealed, Illuminated\) \(Side Relampable\) Or Non Illuminated, Style Srpc23

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14

MIL-PRF-22710/23D

Inch

.005

0.13

.030

0.76

.116

2.95

.250

6.35

.460

11.68

.740

18.80

1.00

25.40

1.30

33.00

1.50

38.10

NOTES

1. Dimensions are in inches. Metric equivalents are for general information only.

2. Unless otherwise specified, tolerances are .02 (.51 mm) for two places decimals and .010

(.25mm) for three place decimals.

3. When panel seal is specified (see table I), the material shall be chosen to meet the performance

requirements of this specification.

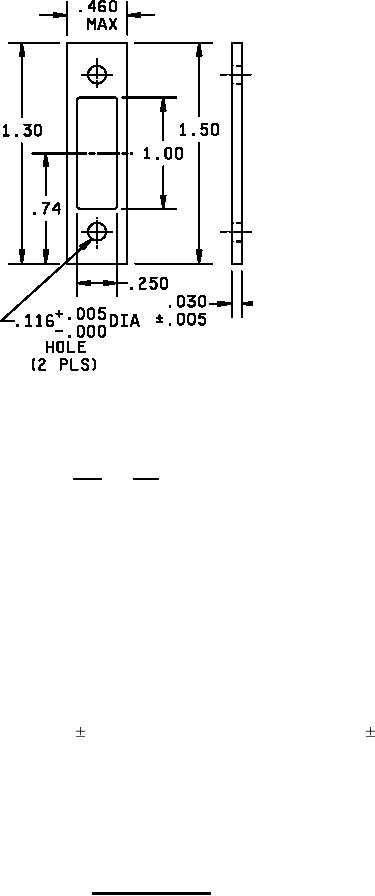

FIGURE 2 Panel seal gasket.
