INCH-POUND
MIL-DTL-9395/43C
3 October 2006
SUPERSEDING
MIL-DTL-9395/43B
30 May 2001
DETAIL SPECIFICATION SHEET
SWITCHES, PRESSURE, GAGE (TYPE II), LOW LEVEL TO 1 AMPERE
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the switches described herein shall consist of this document and MIL-
DTL-9395.
SAE-AS28775
MIL-G-5514
Inches
mm
SAE-AS4395E04
.004
.10
.005
.13
.052
1.32
.294
7.47
.295
7.49
.437
11.10
.440
11.18
.750
19.05
.950
24.13
.990
25.15
.996
25.30
1.005
25.53
1.750
44.45
2.060
52.32
2.38
60.45
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ± .02 (.51 mm).

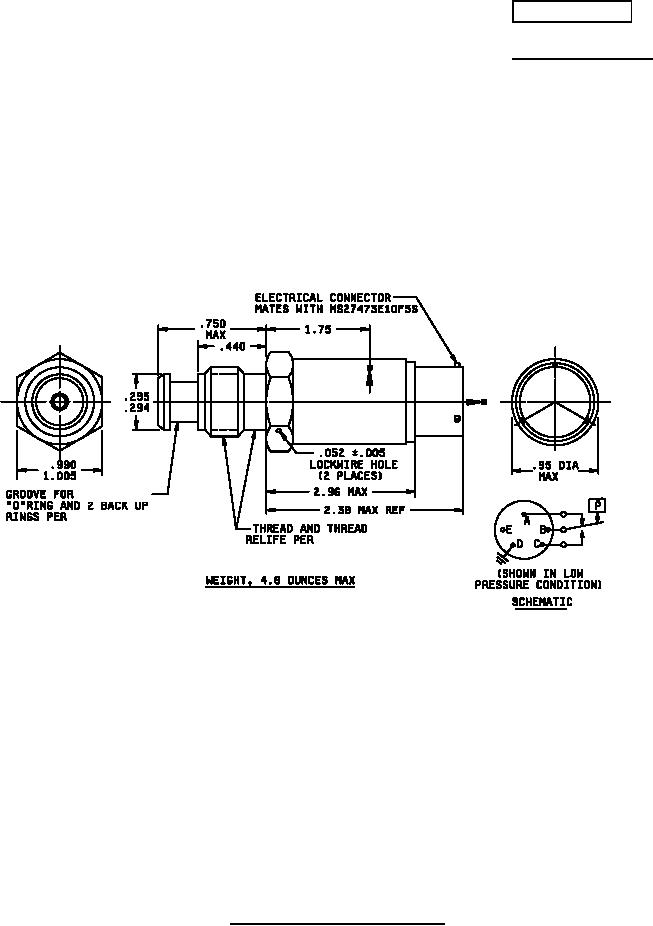

FIGURE 1. Switches, pressure, gage type II.
AMSC N/A
FSC 5930
