MIL-DTL-9395/27G
Inches
mm
.038
.97
.058
1.47
.080
2.03
.48
12.2
.55
14.0
SAE-AS4395-4
.684
17.37
1.000
25.40
1.150
29.21
1.545
39.24
1.775
45.08
1.875
47.62
2.250
57.15
2.320
58.93
2.400
60.96
WEIGHT: .20 LB MAX

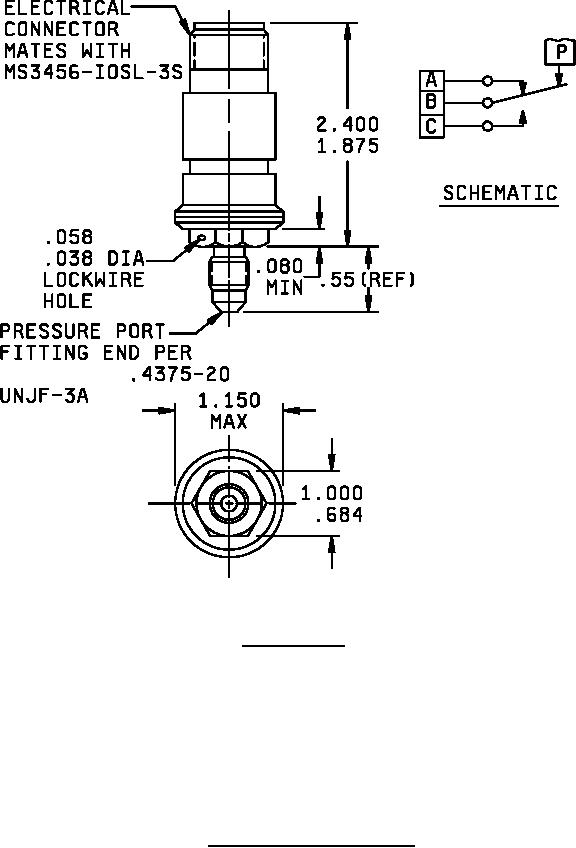

Configuration 7
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only and are based upon 1 inch = 25.4
mm.
3. Exact shape of switching is optional provided outline dimensions specified are not exceeded
and mounting holes and connector locations are as specified.
4. Schematics shown are for switches with pressure ports exposed to zero lbf/in2.
FIGURE 1. Dimensions and configurations - Continued.
