INCH-POUND
MIL-DTL-5423/1F
17 February 2009
SUPERSEDING
MIL-DTL-5423/1E
4 February 2008
DETAIL SPECIFICATION SHEET
BOOTS, DUST AND WATER SEAL, TYPE A (FOR TOGGLE SWITCHES),
STYLE 1 (ONE HOLE MOUNTING, ENCLOSED) STYLE 1S (RFI-SHIELDED,
ONE - HOLE MOUNTING, ENCLOSED)
This specification sheet is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-5423.
SECTION A-A
STYLE 1S
SECTION A-A
Inches
mm
Inches
mm
STYLE 1
.005
0.13
.219
5.56
.010
0.25
.325
8.26
.020
0.51
.469
11.91
.031
0.79
.625
15.88
.125
3.18
.644
16.36
.160
4.06
.844
21.44
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only and are based upon 1 inch = 25.4 mm.
3. Unless otherwise specified, tolerances are ±.015 (0.38 mm).

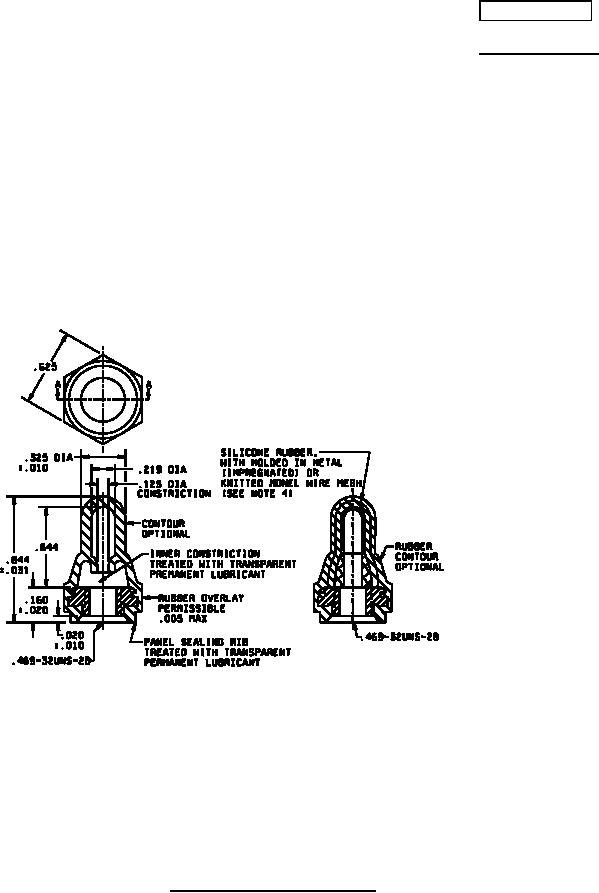

FIGURE 1. Boots, type A, style 1 and style 1S.
AMSC N/A
FSC 5930
