MIL-DTL-3786/9E
NOTE: On circuits with fewer positions, short clips will be omitted from clockwise end of rotation.
Example: 1 pole 22 position would have clip 23 omitted.

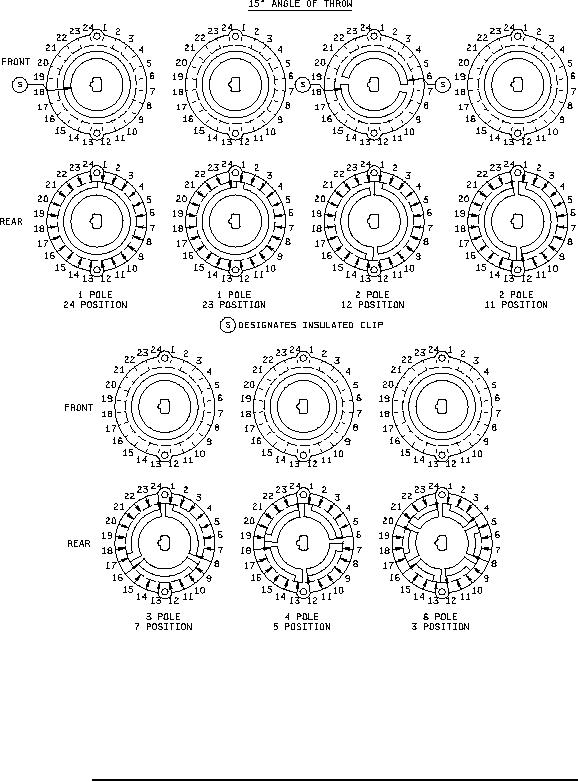

FIGURE 2. Circuit diagrams viewed with switch in extreme counterclockwise position.
3
