MIL-DTL-21604/2C

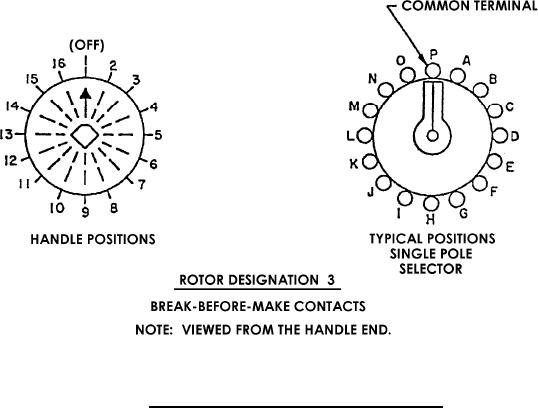

FIGURE 2. Rotor contact configuration and handle positions.
REQUIREMENTS:
Dimensions and configuration: See figure 1, figure 2, and table I.
Angle of throw: 22.5 (degrees).
Switching action: Detent.
Electrical loads: AC current: 5 ampere.
Voltage: 125 volts (at 60 and 400 Hz, 0.80 inductive power factor).
Temperature rise: 30C maximum.
Contact material:
Rotor: Silver-overlay phosphor bronze.
Stator: Silver-overlay copper.
Barriers: See figure 1.
Terminal marking: See figure 1 and figure 2.
Stop marking: See figure 1.
Qualification samples: See table II.
5
