MS27737G
Inches |
mm |
Inches |
mm |
Inches |
mm |
Inches |
mm |
.005 |
0.13 |
.060 |
1.52 |
.25 |
6.4 |
.635 |
16.13 |
.008 |
0.20 |
.076 |
1.93 |
.38 |
9.7 |
1.05 |
26.7 |
.012 |
0.30 |
.090 |
2.29 |
.42 |
10.7 |
1.140 |
28.96 |
.015 |
0.38 |
.18 |
4.6 |
.432 |
10.97 |
1.180 |
29.97 |
.020 |
0.51 |
.19 |
4.8 |
.469 |
11.91 |
1.270 |
32.27 |
.03 |
0.8 |
.47 |
11.9 |
NOTES:
1. Dimensions are inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ± .020 (0.51 mm) for two place decimals and ± .005 (0.13 mm) for three place decimals.
4. For hardware and terminal screw detail specifications, see appendix of MIL-DTL-3950.
5. Part number example MS27737-21A (locking combinations' A').
6. In the event of a conflict between the text of this standard and the reference cited herein, the text of this standard shall take precedence.

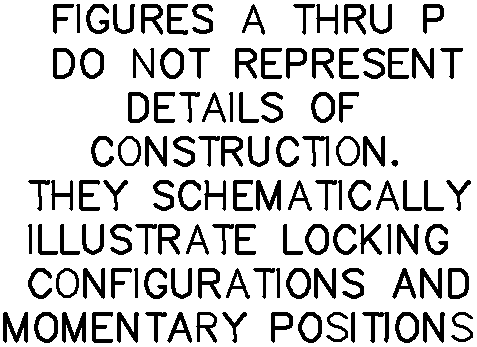

FIGURE1. Dimensions and configuration Continued
