MS27409E

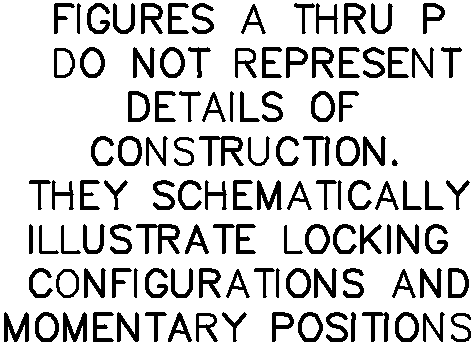

FIGURE 2. Locking Combinations.
TABLE I Detail Requirements.
MS part No. |
Available locking combinations |
Circuit with Toggle Lever In |
Current capacity (amperes) 28 volts DC |
Current capacity(amperes) 115 volts, 60 and 400 Hertz AC |
||||||
Keying side |
Center |
Opposite keying side |
Lamp- Load circuit |
Resistive circuit |
Inductiv e circuit |
Lamp- Load circuit |
Resistive circuit |
Inductive circuit |
||
MS27409-1 |
All |
1-2 4-5 7-8 On 10-11 |
2-3 4-5 7-8 On 11-12 |
2-3 5-6 8-9 On 11-12 |
5 |
20 |
12 |
4 |
15 |
15 |
MS27409-2 |
E,F,K,L,M,N |
1-2 Mom. 4-5 7-8 On 10-11 |
1-2 4-5 7-8 On 11-12 |
2-3 5-6 8-9 On 11-12 |
4 |
18 |
10 |
2 |
11 |
8 |
MS27409-3 |
E,L,N |
1-2 Mom 4-5 7-8 On 10-11 |
1-2 4-5 7-8 On 11-12 |
2-3 Mom 5-6 8-9 On 11-12 |
||||||
3
