INCH-POUND MS25308L
5 October 2011
SUPERSEDING MS25308K
4 September 1991
DETAIL SPECIFICATION SHEET
SWITCH, TOGGLE, POSITIVE BREAK, LEVER LOCK, ENVIRONMENTALLY SEALED, SCREW TERMINAL, FOUR POLE, .469 MOUNTING BUSHING, 25 AMPERES
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the products described herein shall consist of this specification sheet and MIL-DTL-8834.
Inches |
mm |
Inches |
mm |
.005 .012 .030 .032 .072 .138 .240 |
0.13 0.30 0.76 0.81 1.83 3.51 6.10 |
.250 .432 .469 .687 1.328 1.336 1.686 |
6.35 10.97 11.91 17.45 33.73 33.93 42.82 |
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±.010 (0.25 mm) on decimals and ±5° on angles.

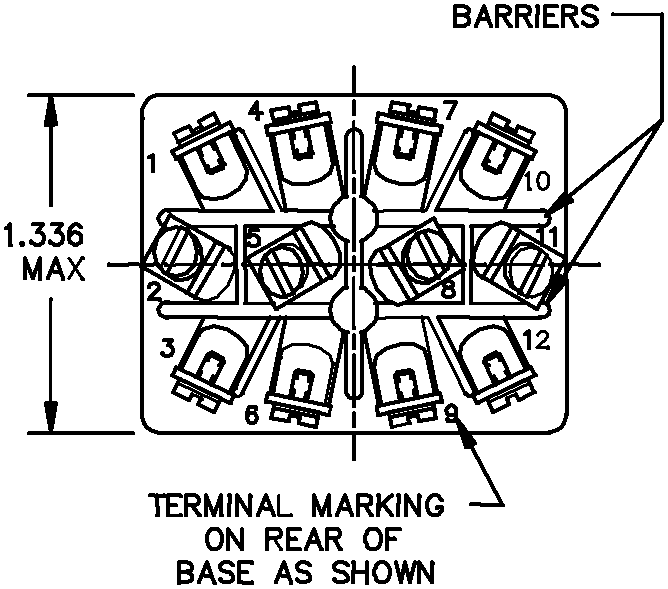

FIGURE 1. Dimensions and configuration - Continued.
AMSC N/A FSC 5930
