INCH-POUND
MIL-S-24317/98
28 February 2006
SUPERSEDING MIL-S-24317/9A
21 December 1989
MILITARY SPECIFICATION SHEET
SWITCHES, MULTISTATION, PUSH 8UTTON, ILLUMINATED MATRIX ARRANGEMENT PLUG-IN MODULE, 2 AMPERES, UNSEALED, TYPE SM09L1
INACTIVE FOR NEW DESIGN AFTER 08 MARCH 1999.
This specification is approved for use by all
Departments and Agencies of the Department of Defense.
The complete requirements for acquiring the switch described herein shall consist of this specification and the latest issue of MIL-DTL-24317.

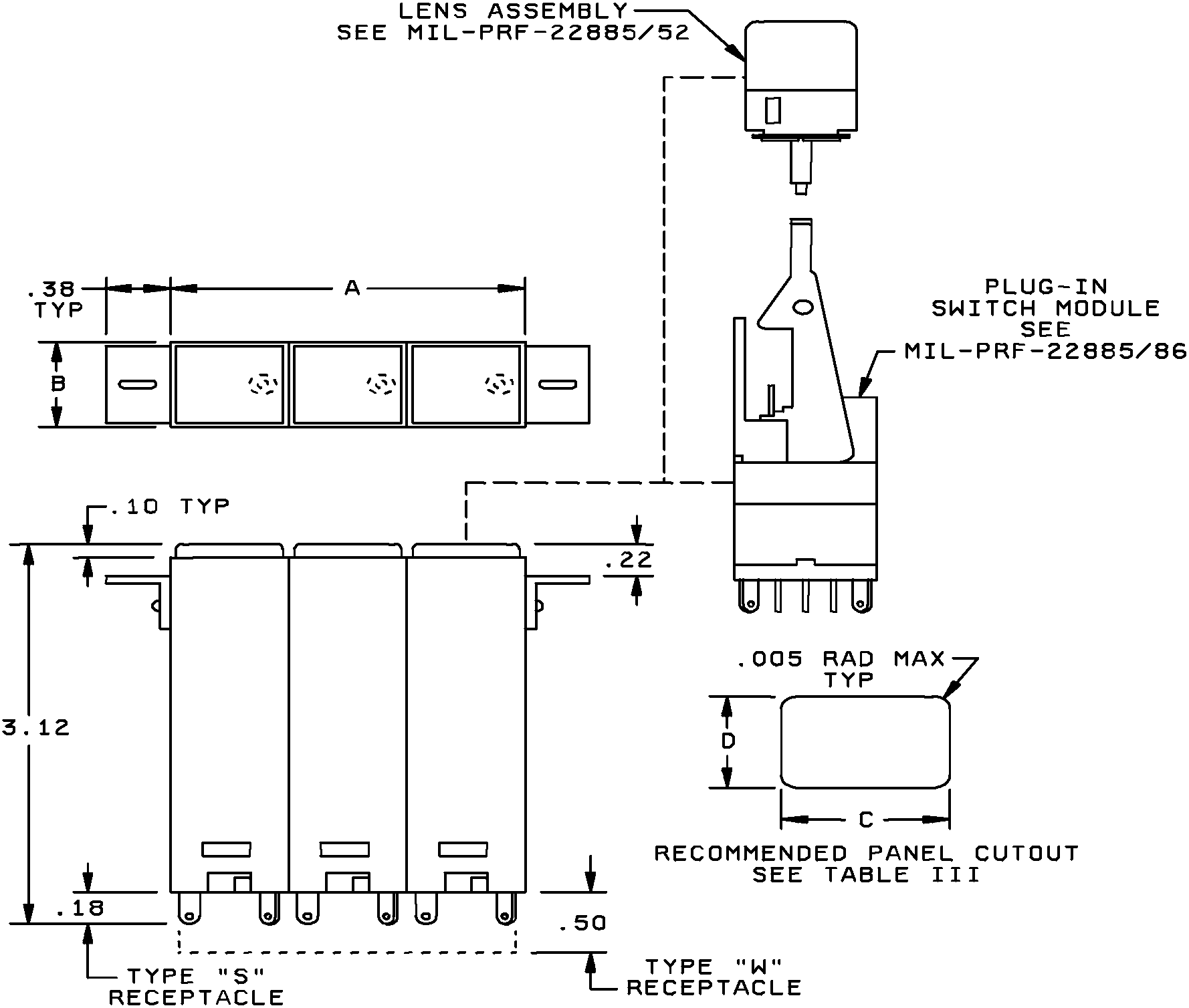

FIGURE1. Matrix frame assembly, three station.
AMSC N/A FSC 5930
