MIL-PRF-8805/73K
AWG NO .20 WIRE LEADS PER
SAE-AS22759/9
Inches
mm
Inches
mm
Inches
Mm
.035
0.89
.469
11.91
1.200
30.48
.041
1.04
.531
13.49
1.270
32.26
.047
1.19
.875
22.23
1.300
33.02
.069
1.75
.937
23.80
1.669
42.39
.075
1.91
.969
24.61
1.731
43.97
.213
5.41
1.000
25.40
71.00
1803.4
.223
5.66
1.029
26.14
73.00
1854.2
.391
9.93
1.031
26.19
.421
10.69
1.091
27.71
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Alternative base metals and protective finishes, as approved by the qualifying activity, may be utilized
for lock washer. Dimensions shall be in accordance with the referenced hardware specification.

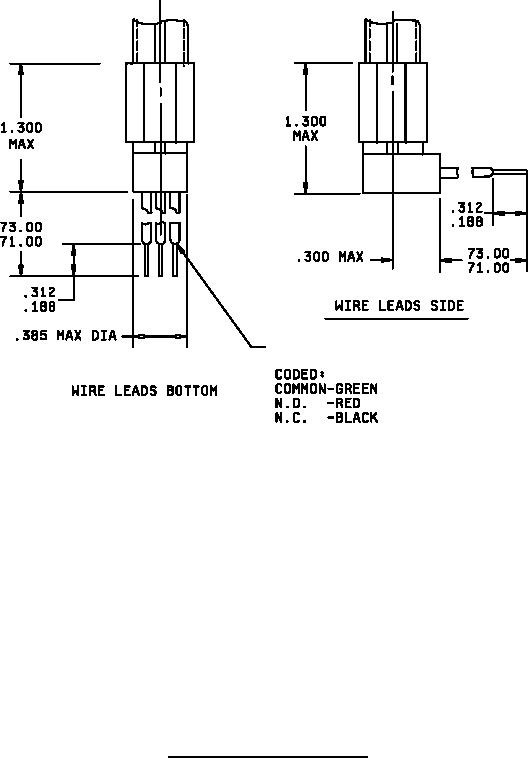

FIGURE 1. Dimensions and configuration continued
