MIL-PRF-8805/72L
Inches
mm
Inches
mm
Inches
mm
.042
1.067
.265
6.731
.390
9.906
.052
1.321
.295
7.493
.410
10.414
.060
1.524
.300
7.620
.535
13.589
.188
4.775
.312
7.924
.565
14.351
.190
4.826
.350
8.890
1.15
29.21
.210
5.334
.370
9.398
71.00
1803.4
.213
5.410
.380
9.652
73.00
1854.2
.223
5.664
.385
9.779
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Mounting hardware not supplied on types C and F.
4. Body dimension on switches is .375 ±.005 (9.53 ± .13 mm) across the flats and the button diameter is
.218 ±.005 (5.54 ± 13 mm).
5. Alternative base metals and protective finishes, as approved by the qualifying activity, may be utilized
for lock washer material. Dimensions shall be in accordance with referenced hardware
specifications.

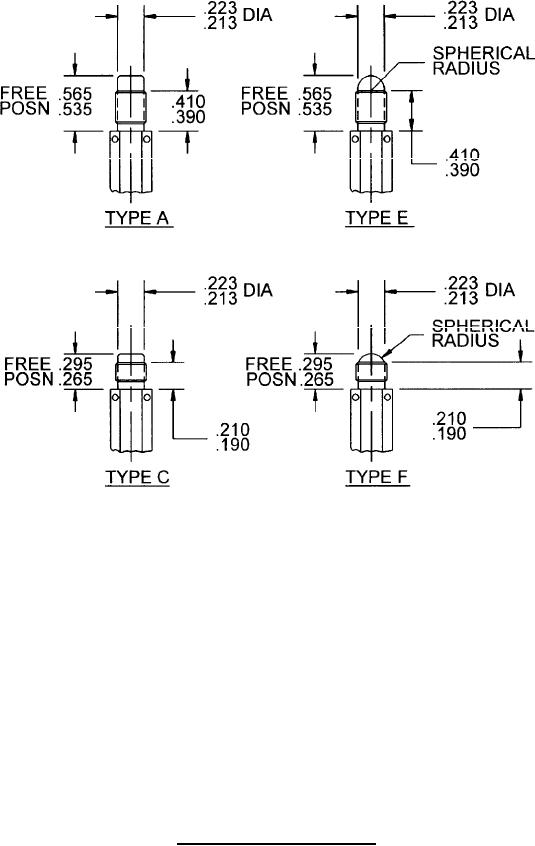

FIGURE 1. Dimensions and configuration continued.
2
