MIL-PRF-8805/65E
CONNECTOR PER
SAE-AS50151
Inches
mm
Inches
mm
.003
0.08
.375
9.53
.004
0.10
.470
11.94
.025
0.64
.650
16.51
.030
0.76
.750
19.05
.031
0.79
.812
20.62
.038
0.97
1.030
26.16
.047
1.19
1.125
28.58
.050
1.27
1.220
30.99
.072
1.83
1.380
35.05
.110
2.79
3.580
90.93
.150
3.81
3.700
93.38
.250
6.35
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±.02 (0.51 mm) for two place decimals and ±.005 (0.13 mm) for three
place decimals.
4. Switch configuration optional provided dimensions specified are not exceeded.

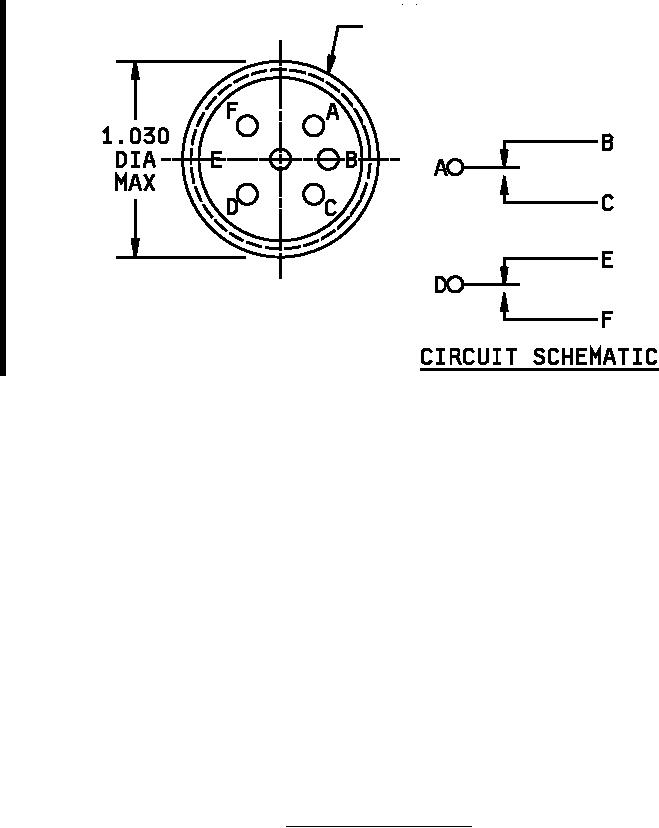

FIGURE 1. Dimensions and configurations - Continued.
2
