MIL-PRF-8805/55J
Inches
mm
Inches
mm
.010
0.25
.858
21.79
.016
0.41
.910
23.11
.032
0.81
1.098
27.89
.070
1.78
1.312
33.32
.125
3.18
1.360
34.54
.138
3.51
1.546
39.27
.156
3.96
1.660
42.16
.250
6.35
1.812
46.02
.562
14.27
2.160
54.86
.655
16.64
2.218
56.34
.672
17.07
2.968
75.39
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±.010.
4. Mounting hardware not furnished.
5. Lockwashers are not captive to terminal screws.
6. Dimension A is 2.218 or 2.968, see table I.
7. Dimension B is 0.910 or 1.660, see table I.
8. Design optional within envelope dimensions shown.

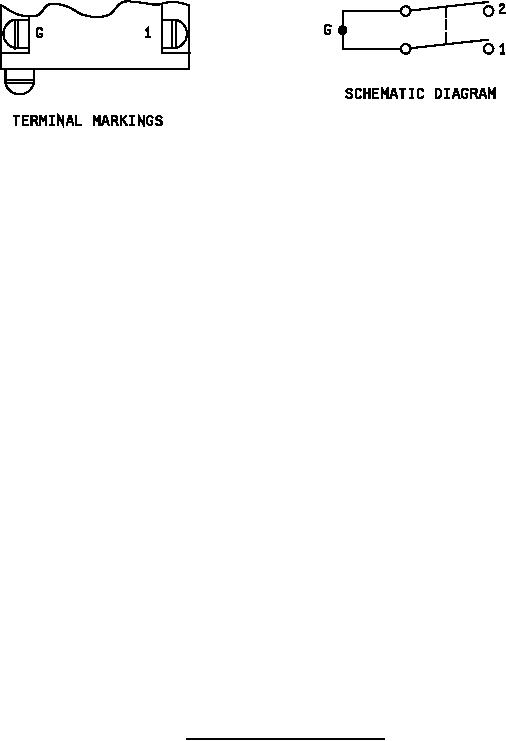

FIGURE 1. Dimensions and configuration - Continued.
2
