MIL-PRF-8805/43K
Inches
mm
Inches
mm
Inches
mm
Inches
mm
.003
0.08
.042
1.06
.375
9.53
.876
22.23
.004
0.10
.072
1.83
.437
11.10
1.0
25.
.012
0.30
.093
2.36
.469
11.91
1.295
32.89
.015
0.38
.120
3.05
.625
15.88
2.0
50.
.030
0.76
.250
6.35
.630
16.00
72.0
1828.
.031
0.79
.257
6.53
.680
17.27
NOTES:
1. Dimensions are in inches.
2. Unless otherwise stated, tolerance is ±.005 (0.13mm).
3. Exact shape of switch optional provided dimensions specified are not exceeded.
4. Lead shall be marked in with the switch circuit identification number followed by wire gauge number
(1-20, 2-20, etc.) Leads may be stripped .50 maximum for the purpose of inspection of electrical
parameters. Leads shall be potted to provide stress relief.
5. Metric equivalents are given for general information only. Alternative base metals and protective
finishes, as approved by the qualifying activity, may be utilized for hexagon nut, lock washer and
keyway washer material. Dimensions shall be in accordance with the referenced hardware
specifications.
6. Alternative base metals and protective finishes, as approved by the qualifying activity, may be
utilized for hardware material.

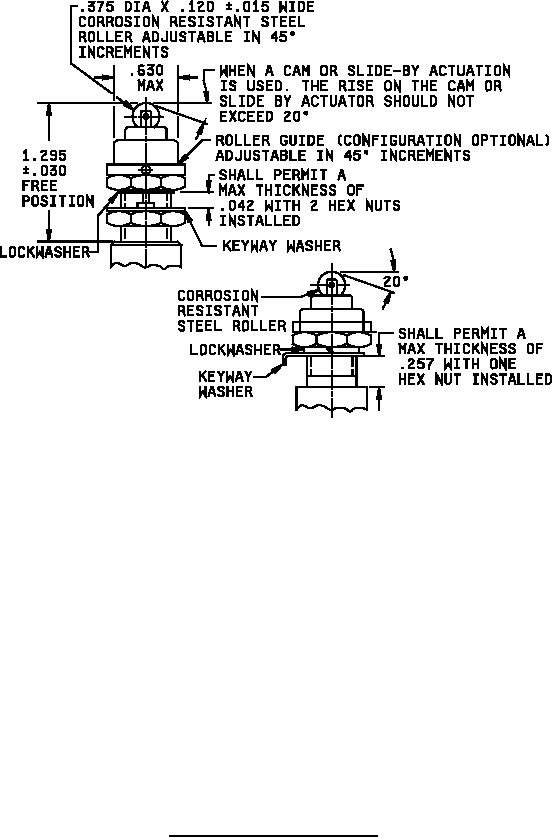

FIGURE 1. Dimensions and Configurations - Continued.
