MIL-PRF-8805/41C
inches
mm
inches
mm
inches
mm
Inches
mm
.003
.08
.049
1.24
.125
3.18
.780
19.81
.004
.10
.05
1.27
.188
4.78
.938
23.83
.010
.25
.062
1.57
.22
5.59
.984
24.99
.015
.38
.072
1.83
.375
9.53
1.0
25.40
.022
.56
.080
2.03
.47
11.94
1.062
26.97
.030
.76
.100
2.54
.528
13.41
1.300
33.02
.045
1.14
.110
2.79
.750
19.05
1.500
38.10
.047
1.19
.112
2.84
.752
19.10
1.675
42.55
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified, tolerance is ± .030 (0.76 mm) for one place decimals, .± .015 (0.38 mm) for two place
decimals, and ± .005 (0.13 mm) for three place decimals.
3. Exact shape of switch optional provided dimensions specified are not exceeded.
4. The circuit and terminal designation shall be permanently and legibly marked on switch case.
5. Metric equivalents are given for general information only and are based on 1 inch = 25.4 mm..

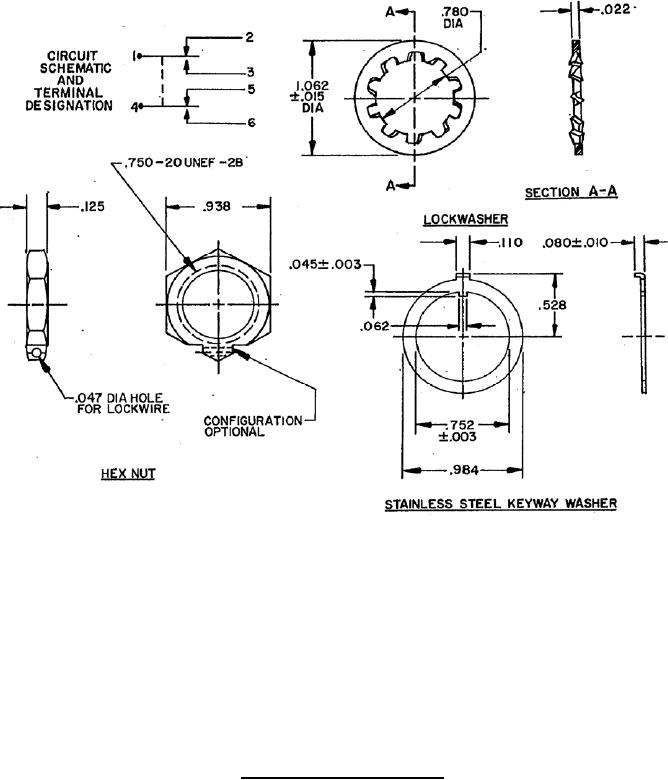

FIGURE 1. Dimensions and configuration - continued.
REQUIREMENTS:
Dimensions and configuration: See figure 1.
Enclosure design: 5 (Hermetic).
