MIL-PRF-8805/32J
Turret terminals
MS27994-3
Inches
mm
Inches
mm
Inches
mm
.001
0.03
.088
2.24
0.326
8.28
.003
0.08
.096
2.44
0.33
8.4
.020
0.51
.121
3.07
0.42
10.7
.040
1.02
.187
4.75
0.425
10.80
.050
1.27
.188
4.78
0.626
15.90
.06
1.52
.214
5.44
2.00
50.8
.07
1.78
.27
6.9
12.00
304.8
NOTES:
1. Dimensions are in inches.
2. Unless otherwise stated, tolerances are .02 (.5 mm) for two place decimals and .005 (.13 mm) for
three place decimals.
3. Mounting holes will accept pins or screws of .087 (2.21 mm) maximum diameter on .188 .002 (4.78
.05 mm) centers.
4. Exact shape of switch optional, provided dimensions specified are not exceeded.
5. Metric equivalents are given for general information only.

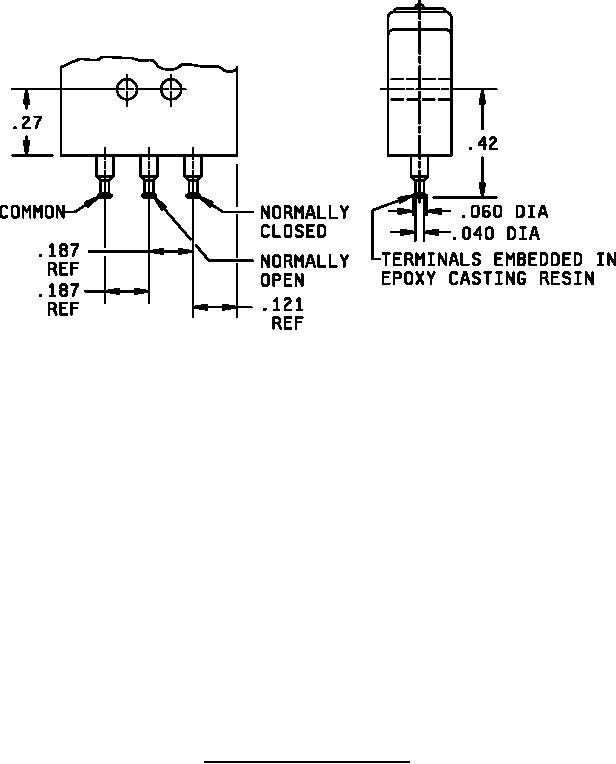

FIGURE 1. Dimensions and configurations (continued).
