MIL-PRF-8805/20N
Inches
mm
Inches
mm
Inches
mm
.001
0.03
.125
3.18
.390
9.91
.005
0.13
.187
4.75
.500
12.70
.008
0.20
.188
4.78
.515
13.08
.012
0.30
.220
5.59
.562
14.27
.015
0.38
.250
6.35
.625
15.88
.022
0.56
.281
7.14
.68
17.27
.031
0.79
.312
7.92
1.250
31.75
.094
2.39
.375
9.53
NOTES:
1.
Dimensions are in inches.
2.
Metric equivalents are given for general information only.
Unless otherwise stated, tolerance is ±.015 (0.38 mm).
3.
4.
Exact shape of switch optional provided dimensions specified are not exceeded.
5.
Panel seal gasket supplied with enclosure design 6 (splashproof) switches.
6.
Recommended mounting hole: 0.515 +.008/-.001 diameter.
7.
Optional mounting nut is MS25082-B22, MS25082-C22, or equivalent as applicable. Alternative base
metals and protective finishes, as approved by the qualifying activity, may be utilized for optional
mounting nut. Dimensions shall be in accordance with referenced hardware specification.

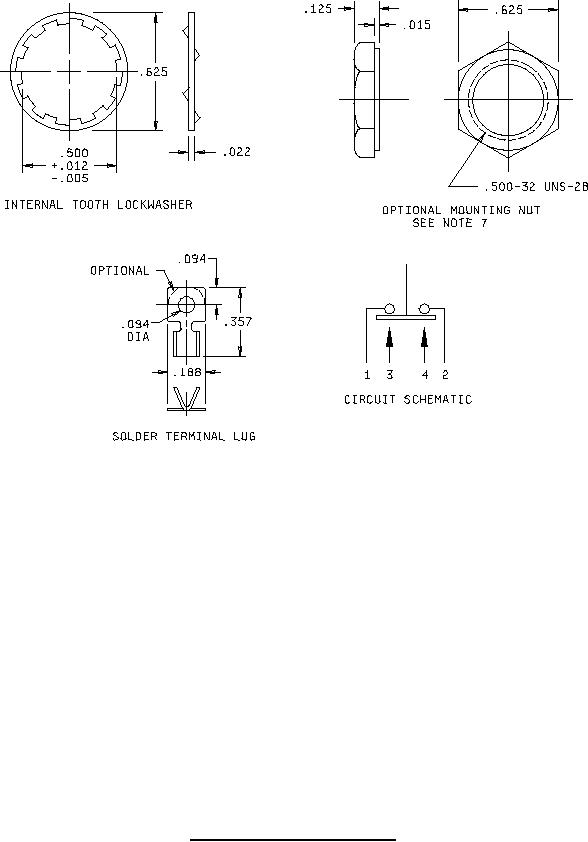

FIGURE 1. Dimensions and configurations (continued).
