MIL-PRF-8805/11J
Inches
mm
Inches
mm
.003
0.08
.312
7.92
.010
0.25
.365
9.27
.070
1.78
.505
12.83
.093
2.36
.515
13.08
.101
2.57
.520
13.21
.125
3.18
.850
21.59
.140
3.56
1.250
31.75
.187
4.75
1.750
44.45
.250
6.35
1.812
46.02
NOTES:
.296
7.52
1. Dimensions are in inches.
2. Unless otherwise stated, tolerance is ±.015 (0.38 mm).
3. Exact shape of switch optional provided dimensions specified are not exceeded.
4. Metric equivalents are given for general information.
5. Dimensions shown are case mounting holes. Cover mounting holes may exceed these dimensions.
6. Dimensions specified for MS25344-1 are applicable to MS25342-1 and MS25343-1, unless otherwise
indicated.
7. Alternative base metals and protective finishes, as approved by the qualifying activity, may be utilized
for screw and washer material. Dimensions shall be in accordance with referenced hardware
specification.
8. MS25342, MS25343, and MS25344 were superseded by MIL-PRF-8805/11, the MS25342,
MS25343, and MS25344 Part Numbers (PINS) were retained.

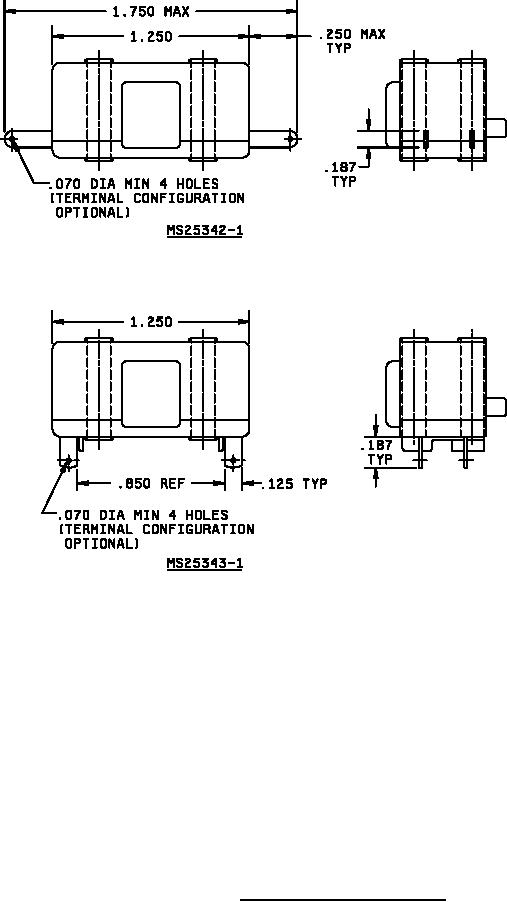

FIGURE 1. Dimensions and configurations (continued)
2
