MIL-PRF-8805/101K
Inches
mm
Inches
mm
Inches
mm
Inches
mm
.001
0.03
.053
1.35
.096
2.44
.220
5.59
.002
0.05
.055
1.40
.112
2.84
.281
7.14
.003
0.08
.072
1.83
.124
3.14
.282
7.16
.005
0.13
.073
1.85
.125
3.18
.290
7.37
.010
0.25
.088
2.24
.141
3.58
.320
8.13
.015
0.38
.090
2.29
.144
3.66
.350
8.89
.020
0.51
.092
2.34
.156
3.96
.355
9.02
.030
0.76
.093
2.36
.187
4.75
.426
10.82
.510
12.95
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±.015 (0.38 mm).
4. Terminal pattern is the same on form C switches as on form Z, except terminal four is not provided.
5. Dimension "A" is .125 (3.18 mm) or .187 (4.75 mm), as defined by the Part or Identifying
Number (PIN).
6. Terminal marking may be on bottom of switch.

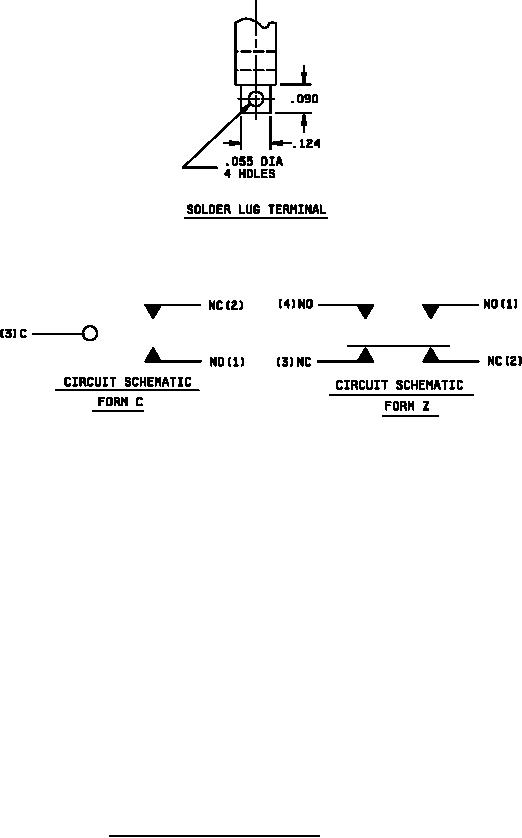

FIGURE 1 Dimensions and configurations - Continued.
