MIL-PRF-83504/5B

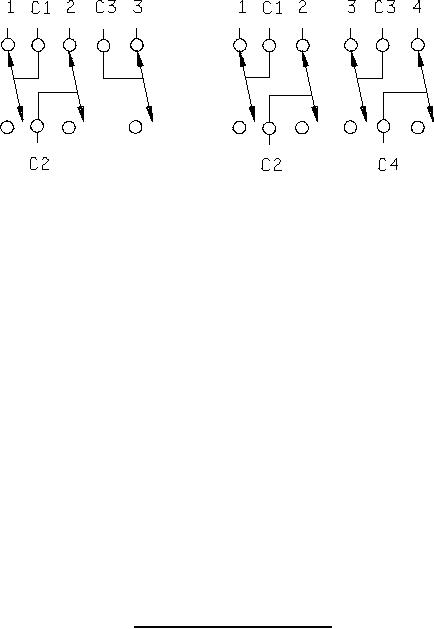

Typical circuit diagram
( Viewed from top )
Inches
mm
Inches
mm
.003
0.08
.090
2.29
.005
0.13
.100
2.54
.010
0.25
.160
4.06
.012
0.30
.200
5.08
.015
0.38
.240
6.10
.020
0.51
.295
7.49
.021
0.53
.300
7.62
.030
0.76
.345
8.76
.040
1.02
.380
9.65
NOTES
1. Dimensions are in inches. Metric equivalents are given for information only.
2. Each switch position shall be numbered as shown.
3. Exact shape of switch is optional, provided outline dimensions are not exceeded.
4. Design of terminals and standoffs are optional
FIGURE 1. Dimensions and configuration - Continued.
REQUIREMENTS:
Material:
Body and actuator rocker: Molded plastic.
Terminals: Plug-in or solderable. See table I. The solderable terminals shall be equivalent to or
better than solder over nickel over copper over brass. Both plug-in and solderable must meet
solderability requirements.
Terminal sealing and solderability: The terminal potting material meniscus may extend to .030 inch
maximum beyond the solder standoff.
