MIL-PRF-24236/20J
.660
MAX
DIA
Inches
mm
Inches
mm
.005
0.13
.138
3.51
.007
0.18
.171
4.34
.008
0.20
.218
5.54
.010
0.25
.224
5.69
.015
0.38
.250
6.35
.018
0.46
.300
7.62
.031
0.79
.347
8.81
.037
0.94
.360
9.14
.045
1.14
.375
9.53
.054
1.37
.458
11.63
.063
1.60
.550
13.97
.073
1.85
.660
16.76
.078
1.98
.720
18.29
.104
2.64
.937
23.80
.114
2.90
1.465
37.21
.125
3.18
1.510
38.35
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is .015 (0.38 mm).
4. Switch case material is steel, nickel plated.
5. Removable mounting brackets furnished for use with configurations A1, B1, and C1 are made of stainless
steel.

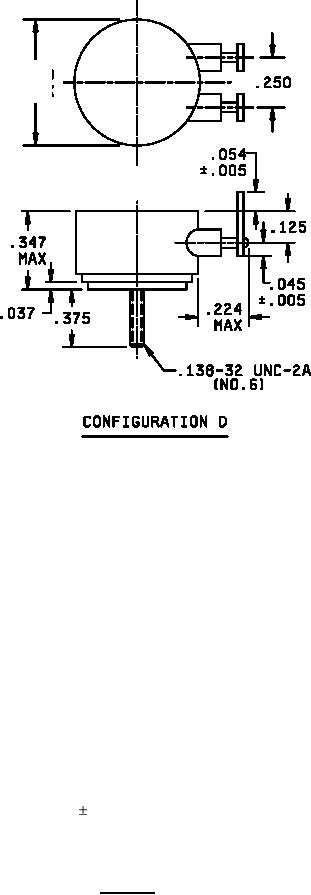

FIGURE 1. Switches - Continued.
4
