MIL-PRF-22885/88C
Inches
mm
Inches
mm
Inches
mm
.003
.01
.075
1.91
.570
14.48
.005
.13
.203
5.16
.718
18.24
.010
.25
.290
7.37
.844
21.44
.020
.51
.296
7.52
1.062
26.97
.032
.81
.359
9.12
1.11
28.19
.040
1.02
.556
14.12
1.20
30.48
1.344
34.14
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified, tolerance is .016 (.41 mm).
3. Metric equivalents are given for general information only.
4. The design configuration is optional within envelope dimensions shown.
5. Flat or cylindrical type terminal design is optional.
6. Basic switch number shall be permanently marked as shown. Additional marking of switch number on
opposite side of basic switch is optional.
7. Two pole switch design utilizing two spacers, as shown, is optional.

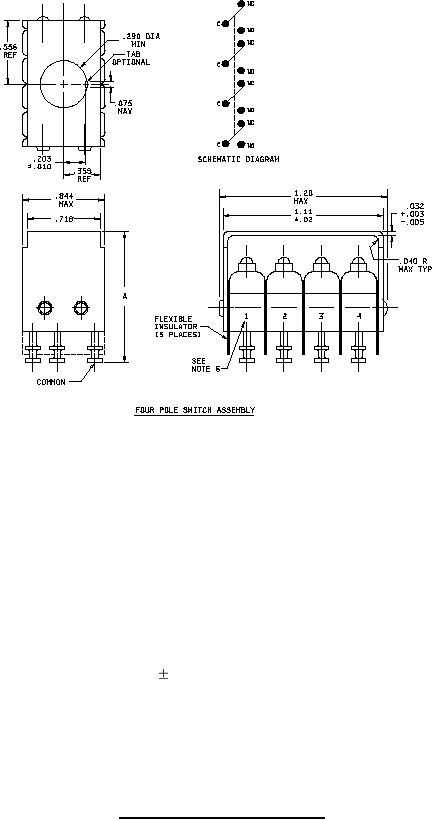

FIGURE 1. Dimensions and configurations - Continued.
