MIL-PRF-22885/77E
NOTES:
1. Lamp schematics indicate lamp positions as viewed from front of switch.
2. Terminals shall be permanently marked on switch housing as shown.

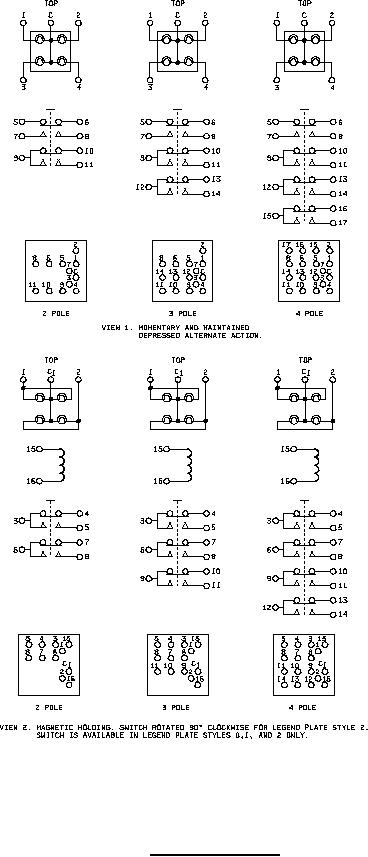

FIGURE 2. Schematic diagram.
