MIL-PRF-22885-71 Switches, Push Button, Illuminated, 7 Amperes And Low Level, 4-Lamp, Rfi Shielded, Solid Mount

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7


MIL-PRF-22885/71C
NOTES:
1. Numbers designate location of lamps (see schematic).
2. Lens styles are shown from front of panel with polarizing hole in upper left hand corner away from
viewer.

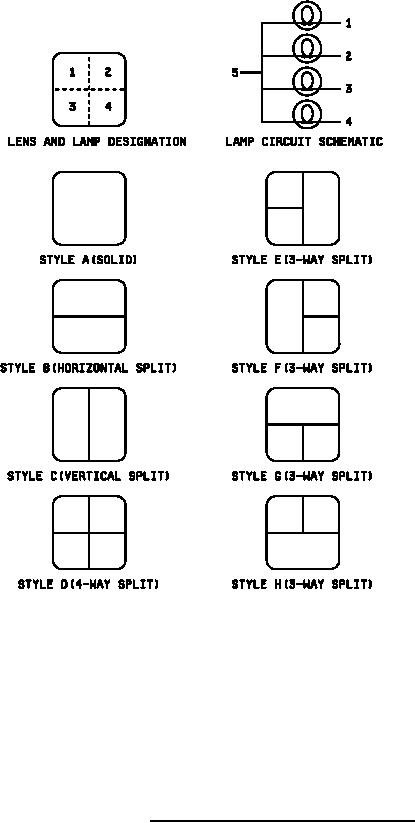

FIGURE 2. Lens style and lamp circuit arrangement.
